Omega Technologies ATHS500 1/2 Hi-Lok Installation Socket, 3/8 Square Drive

Part Number: ATHS500 Category: Brand:

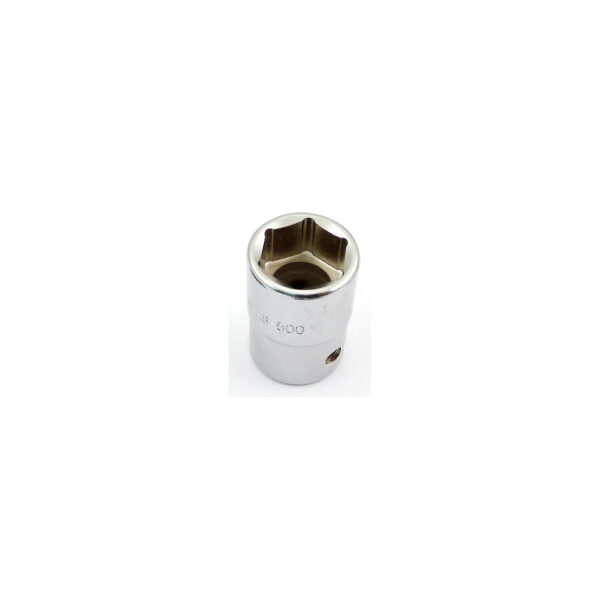

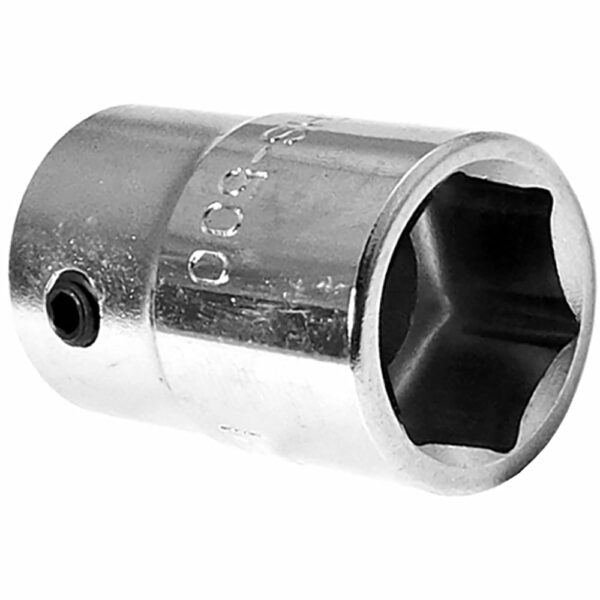

Omega Technologies Hi-Lok socket with set screw retainer, 1/2 hex opening, 3/8 female square drive, 1 overall length. Replaces Hi-Shear HLH102-500.


Product Description

ATHS500 Hi-Lok 1/2” Installation Socket Description: Omega Technologies Hi-Lok Installation Sockets with Set Screw Retainers are anti-FOD sockets and are manufactured to fit common square drives. Omega Technologies Hi-Lok Installation Sockets also feature a through-hole to allow the use of hex keys when they are needed for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations. As an anti-FOD measure, a set screw is provided to retain the sockets onto square drives.

Technical Specifications: Hex Opening: 1/2” Square Drive Size: 3/8” Nose Diameter: 0.710 Overall Length: 1.00

Equivalent Part Number: Hi-Shear® HLH102-500

Technical Specifications

Hex Opening


Square Drive Size


Nose Diameter


Overall Length


Equivalent Part Numbers

Hi-Shear® HLH102-500
