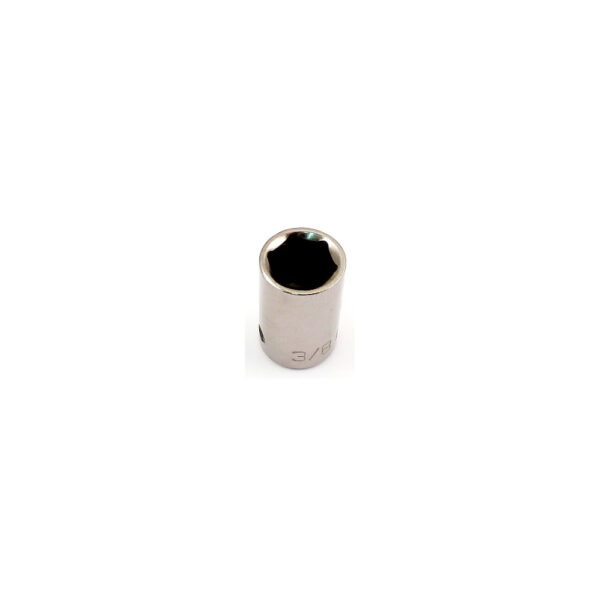

Omega Technologies ATHS375A 3/8 Hi-Lok Installation Socket, 1/4 Square Drive

Part Number: ATHS375A Category: Brand:

Omega Technologies Hi-Lok socket with set screw retainer, 3/8 hex opening, 1/4 female square drive, 7/8 overall length. Replaces Hi-Shear HLH102-375A and ATI ATSK3596-37.


Product Description

ATHS375A Hi-Lok 3/8” Installation Socket Description: Omega Technologies Hi-Lok Installation Sockets with Set Screw Retainers are anti-FOD sockets and are manufactured to fit common square drives. Omega Technologies Hi-Lok Installation Sockets also feature a through-hole to allow the use of hex keys when they are needed for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations. As an anti-FOD measure, a set screw is provided to retain the sockets onto square drives.

Technical Specifications: Hex Opening: 3/8” Square Drive Size: 1/4” Nose Diameter: 0.560 Overall Length: 0.88

Equivalent Part Numbers: Hi-Shear® HLH102-375A ATI ATSK3596-37

Technical Specifications

Hex Opening


Square Drive Size


Nose Diameter


Overall Length


Equivalent Part Numbers

Hi-Shear® HLH102-375A ATI ATSK3596-37
