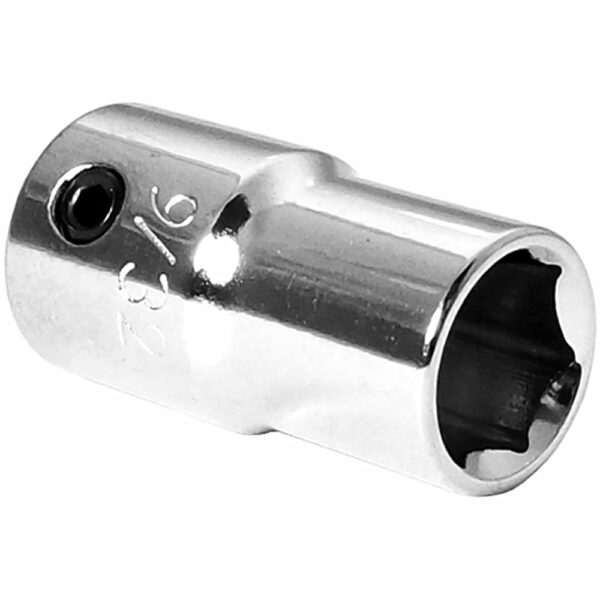

Omega Technologies ATHS281 9/32 Hi-Lok Installation Socket, 1/4 Square Drive

Price: $11.00

Part Number: ATHS281

Omega Technologies Hi-Lok socket with set screw retainer, 9/32 hex opening, 1/4 female square drive, 7/8 overall length. Replaces Hi-Shear HLH102-281 and ATI ATSK3596-28.

Omega Technologies ATHS281 9/32 Hi-Lok Installation Socket, 1/4 Square Drive Description

ATHS281 Hi-Lok 9/32” Installation Socket Description: Omega Technologies Hi-Lok Installation Sockets with Set Screw Retainers are anti-FOD sockets and are manufactured to fit common square drives. Omega Technologies Hi-Lok Installation Sockets also feature a through-hole to allow the use of hex keys when they are needed for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations. As an anti-FOD measure, a set screw is provided to retain the sockets onto square drives.

Technical Specifications: Hex Opening: 9/32” Square Drive Size: 1/4” Nose Diameter: 0.410 Overall Length: 0.88

Equivalent Part Numbers: Hi-Shear® HLH102-281 ATI ATSK3596-28

Technical Specifications

Additional information

Hex Opening

9/32''

Square Drive Size

1/4''

Nose Diameter

0.410

Overall Length

0.88

Equivalent Part Numbers

Hi-Shear® HLH102-281 ATI ATSK3596-28

Omega Technologies ATHS281 9/32 Hi-Lok Installation Socket, 1/4 Square Drive Description

ATHS281 Hi-Lok 9/32” Installation Socket Description: Omega Technologies Hi-Lok Installation Sockets with Set Screw Retainers are anti-FOD sockets and are manufactured to fit common square drives. Omega Technologies Hi-Lok Installation Sockets also feature a through-hole to allow the use of hex keys when they are needed for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations. As an anti-FOD measure, a set screw is provided to retain the sockets onto square drives.

Technical Specifications: Hex Opening: 9/32” Square Drive Size: 1/4” Nose Diameter: 0.410 Overall Length: 0.88

Equivalent Part Numbers: Hi-Shear® HLH102-281 ATI ATSK3596-28

Additional information

Hex Opening

9/32''

Square Drive Size

1/4''

Nose Diameter

0.410

Overall Length

0.88

Equivalent Part Numbers

Hi-Shear® HLH102-281 ATI ATSK3596-28
