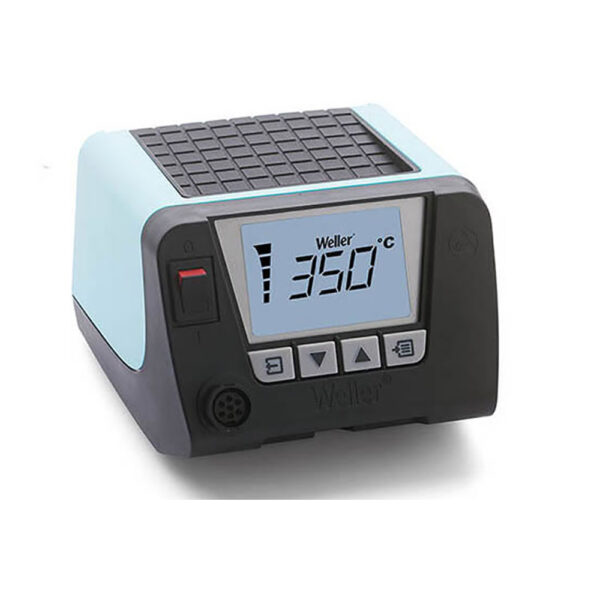

WT1N Power Unit

Price: $274.55

Part Number: WT1N

Weller WT1N Power Unit. Dimensions: 5.87” x 5.44” x 3.98” Voltage: 120V Heating Output: 90W Temperature Range: 150F-999F(50C-550C) Temperature Accuracy: 17F(9C) Temperature Stability: 4F(2C)

WT1N Power Unit Description

Weller WT1N Power Unit is a high productivity power unit with 1 channel and features intuitive use thanks to clear menu structure, reduced footprint thanks to stackability, and automatic standby of tool thanks to a integrated acceleration sensor in the tool. The Weller WT1N features a grafical backlit LC-Display and a housing cover thats useable as storage. Weller WT1N features a front-mounted main switch that ensures easy access at all times and a unique LC display with a detailed overview of all functions, aswell as a power bar graph allows visual monitoring of the easily-readable output power from the station to the soldering iron tip.

Technical Specifications

Additional information

Dimensions

5.87'' x 5.44'' x 3.98''

Voltage

120V

Heating Output

90W

Temperature Range:

150F-999F(50C-550C)

Temperature Accuracy

17F(9C)

Temperature Stability

4F(2C)

Interface

RS232

Equipotential bonding

Via 3.5mm pawl socket on front of device

Order Number

T0053434699

WT1N Power Unit Description

Weller WT1N Power Unit is a high productivity power unit with 1 channel and features intuitive use thanks to clear menu structure, reduced footprint thanks to stackability, and automatic standby of tool thanks to a integrated acceleration sensor in the tool. The Weller WT1N features a grafical backlit LC-Display and a housing cover thats useable as storage. Weller WT1N features a front-mounted main switch that ensures easy access at all times and a unique LC display with a detailed overview of all functions, aswell as a power bar graph allows visual monitoring of the easily-readable output power from the station to the soldering iron tip.

Additional information

Dimensions

5.87'' x 5.44'' x 3.98''

Voltage

120V

Heating Output

90W

Temperature Range:

150F-999F(50C-550C)

Temperature Accuracy

17F(9C)

Temperature Stability

4F(2C)

Interface

RS232

Equipotential bonding

Via 3.5mm pawl socket on front of device

Order Number

T0053434699
