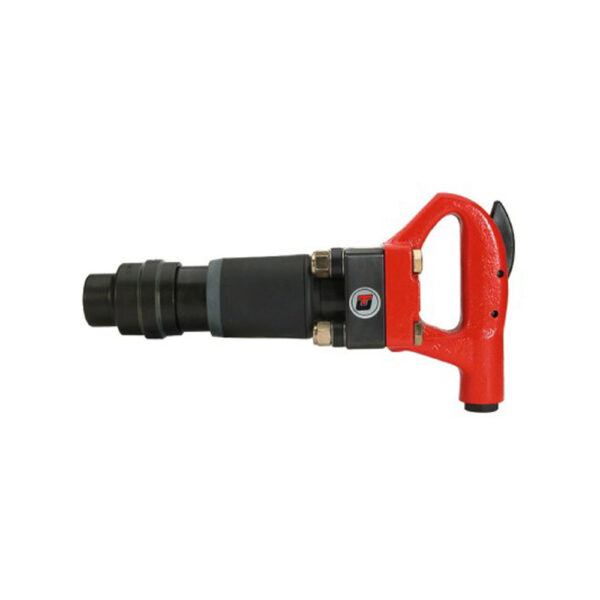

Universal Tool 2” Stroke Chipping Hammer. Retainer: Oval Collar Housing Material: Steel Bushing(in): .680” Round Blows Per Minute: 2,300 Bore(in): 1-1/8” Stroke(in): 3.0” Weight: 17lbs/7.7kg Length: 14.00”/356mm Air Inlet(NPT): 3/8”
Universal Tool 2” Stroke Chipping Hammer Description: Universal Tool Stroke Chipping Hammers feature a crisp plate valve for extra hard hitting and control and an ergonomically advanced design for operator comfort. Universal Tool Stroke Chipping Hammers also feature a heat treated precision cylinder and piston for a longer life and a rugged four bolt construction for heavy duty use.
Universal Tool Stroke Chipping Hammers have a 7/8”-24 Inlet bushing available upon request. Universal Tool Stroke Chipping Hammers are best suited for foundry, plant maintenance and general contractor work.
Technical Specifications: Retainer: Oval Collar Housing Material: Steel Bushing (in): .680” Round Blows Per Minute: 2,300 Bore (in): 1-1/8” Stroke (in): 3.0” Weight: 17lbs/7.7kg Length: 14.00”/356mm Air Inlet (NPT): 3/8” Hose ID (in): 1/2” Air Cons. (cfm): 26 Avg. Air Cons. (cfm): 6.5
| Retainer | Oval Collar |
|---|---|
| Housing Material | Steel |
| Bushing (in) | .680'' Round |
| Blows Per Minute | 2, 300 |
| Bore (in) | 1-1/8'' |
| Stroke (in) | 3.0'' |
| Weight | 17lbs/7.7kg |
| Length | 4.00''/356mm |
| Air Inlet NPT | 3/8'' |
| Hose ID (in) | 1/2'' |
| Air Cons. (cfm) | 26 |
| Avg. Air Cons. (cfm) | 6.5 |
Universal Tool 2” Stroke Chipping Hammer Description: Universal Tool Stroke Chipping Hammers feature a crisp plate valve for extra hard hitting and control and an ergonomically advanced design for operator comfort. Universal Tool Stroke Chipping Hammers also feature a heat treated precision cylinder and piston for a longer life and a rugged four bolt construction for heavy duty use.
Universal Tool Stroke Chipping Hammers have a 7/8”-24 Inlet bushing available upon request. Universal Tool Stroke Chipping Hammers are best suited for foundry, plant maintenance and general contractor work.
Technical Specifications: Retainer: Oval Collar Housing Material: Steel Bushing (in): .680” Round Blows Per Minute: 2,300 Bore (in): 1-1/8” Stroke (in): 3.0” Weight: 17lbs/7.7kg Length: 14.00”/356mm Air Inlet (NPT): 3/8” Hose ID (in): 1/2” Air Cons. (cfm): 26 Avg. Air Cons. (cfm): 6.5
| Retainer | Oval Collar |
|---|---|
| Housing Material | Steel |
| Bushing (in) | .680'' Round |
| Blows Per Minute | 2, 300 |
| Bore (in) | 1-1/8'' |
| Stroke (in) | 3.0'' |
| Weight | 17lbs/7.7kg |
| Length | 4.00''/356mm |
| Air Inlet NPT | 3/8'' |
| Hose ID (in) | 1/2'' |
| Air Cons. (cfm) | 26 |
| Avg. Air Cons. (cfm) | 6.5 |
