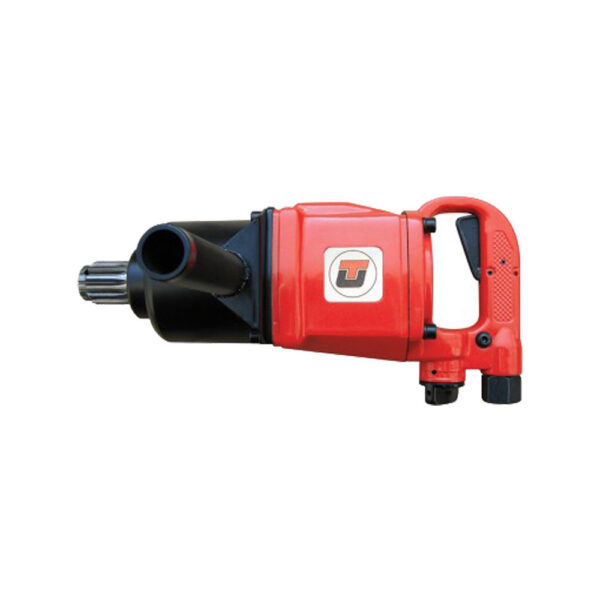

UT8480S Universal Tool 1” Straight Impact Wrench

Price: Price On Request

Part Number: UT8480S

Universal Tool 1” Straight Impact Wrench. Working Torque (ft-lb.): 500-1800 Working Torque (Nm): 678-2435 Max Torque (ft-lb.): 2730 Max Torque (Nm): 3696 Speed (RPM): 6,600 Anvil: #5 Spline Socket Retainer: Button

UT8480S Universal Tool 1” Straight Impact Wrench Description

Universal Tool 1” Straight Impact Wrench Description: Universal Tool 1” Straight Impact Wrenches feature a hard hitting twin hammer with 2730ft.lb maximum torque and a three piece housing design that eases maintenance. The Twin Hammer Design features two hammers that strike balanced blows for more torque than other designs. The simple design offers easy low cost maintenance, and good performance on soft and hard joints. Universal Tool 1” Straight Impact Wrenches also feature an extra heavy duty steel hammer case for ultimate durability and a combined reverse and power regulator switch. Universal Tool 1” Straight Impact Wrenches are best suited for heavy plant, heavy MRO and off road vehicle service environments.

Technical Specifications: Working Torque (ft-lb.): 500-1800 Working Torque (Nm): 678-2435 Max Torque (ft-lb.): 2,730 Max Torque (Nm): 3,696 Speed (RPM): 6,600 Anvil: #5 Spline Socket Retainer: Button Exhaust: Top Weight: 28.0lbs/12.7kg Length: 17.80”/452mm Air Inlet (NPT): 1/2” Hose (I.D. in.): 3/4” Hose Air Cons (cfm): 70 Average (cfm): 17.5

Technical Specifications

Additional information

Working Torque (ft-lb.)

500-1800

Working Torque (Nm)

678-2435

Max Torque (ft-lb.)

2, 730

Max Torque (Nm)

3, 696

Speed (RPM)

6, 600

Anvil

#5 Spline

Socket Retainer

Button

Exhaust

Top

Weight

28.0lbs/12.7kg

Length

17.80''/452mm

Air Inlet NPT

1/2''

Hose (I.D. in.)

3/4''

Hose Air Cons (cfm)

70

Average (cfm)

17.5

UT8480S Universal Tool 1” Straight Impact Wrench Description

Universal Tool 1” Straight Impact Wrench Description: Universal Tool 1” Straight Impact Wrenches feature a hard hitting twin hammer with 2730ft.lb maximum torque and a three piece housing design that eases maintenance. The Twin Hammer Design features two hammers that strike balanced blows for more torque than other designs. The simple design offers easy low cost maintenance, and good performance on soft and hard joints. Universal Tool 1” Straight Impact Wrenches also feature an extra heavy duty steel hammer case for ultimate durability and a combined reverse and power regulator switch. Universal Tool 1” Straight Impact Wrenches are best suited for heavy plant, heavy MRO and off road vehicle service environments.

Technical Specifications: Working Torque (ft-lb.): 500-1800 Working Torque (Nm): 678-2435 Max Torque (ft-lb.): 2,730 Max Torque (Nm): 3,696 Speed (RPM): 6,600 Anvil: #5 Spline Socket Retainer: Button Exhaust: Top Weight: 28.0lbs/12.7kg Length: 17.80”/452mm Air Inlet (NPT): 1/2” Hose (I.D. in.): 3/4” Hose Air Cons (cfm): 70 Average (cfm): 17.5

Additional information

Working Torque (ft-lb.)

500-1800

Working Torque (Nm)

678-2435

Max Torque (ft-lb.)

2, 730

Max Torque (Nm)

3, 696

Speed (RPM)

6, 600

Anvil

#5 Spline

Socket Retainer

Button

Exhaust

Top

Weight

28.0lbs/12.7kg

Length

17.80''/452mm

Air Inlet NPT

1/2''

Hose (I.D. in.)

3/4''

Hose Air Cons (cfm)

70

Average (cfm)

17.5
