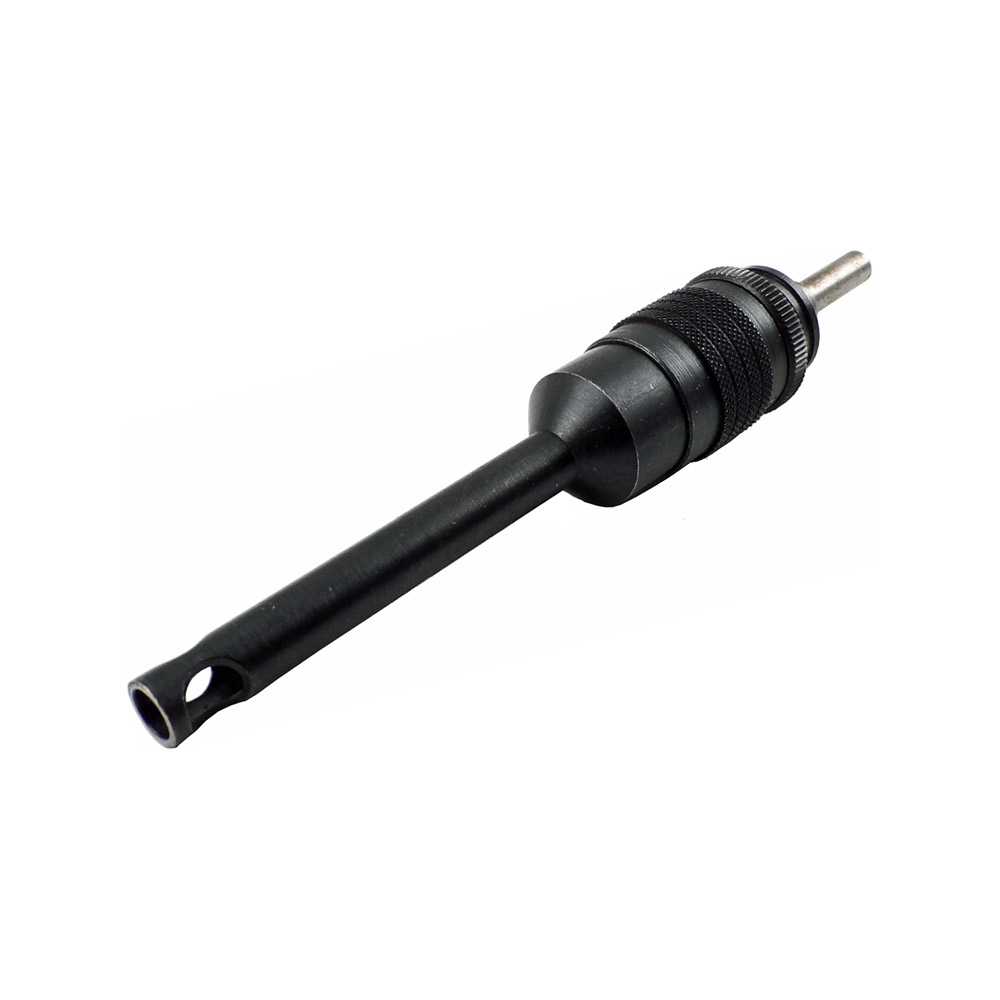

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cage

Price: $63.85

Part Number: OM550-3RL-2.75

Omega Technologies Microstop Countersink Cage Cutter Capacity: 3/8” Shaft Travel: 5/16” Spindle Thread: 1/4”-28 Max RPM: 3000 Skirt Diameter: 0.490 Overall Length: 6.250

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cage Description

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages are designed to provide precise and accurate depth control by limiting the travel of the cutter that’s in use, and aiding in the alignment of the cutter so that it is exactly perpendicular to the surface against which the cage rests.

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages are designed with hardened and ground spindles and are supported by bronze bushings for general use, or needle and ball bearings for more demanding applications. Thrust bearings provide axial support while the micro-adjustment offers the precise depth control. Units may be ordered with a variety of foot-pieces and skirt styles. OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages offer a .001 depth adjustment.

Technical Specifications

Additional information

Cutter Capacity

3/8''

Shaft Travel

5/16''

Spindle Thread

1/4''-28

Max RPM

3000

Skirt Diameter

0.49

Overall Length

6.25

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cage Description

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages are designed to provide precise and accurate depth control by limiting the travel of the cutter that’s in use, and aiding in the alignment of the cutter so that it is exactly perpendicular to the surface against which the cage rests.

OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages are designed with hardened and ground spindles and are supported by bronze bushings for general use, or needle and ball bearings for more demanding applications. Thrust bearings provide axial support while the micro-adjustment offers the precise depth control. Units may be ordered with a variety of foot-pieces and skirt styles. OM550-3RL-2.75 Omega Technologies 3/8” Microstop Countersink Cages offer a .001 depth adjustment.

Additional information

Cutter Capacity

3/8''

Shaft Travel

5/16''

Spindle Thread

1/4''-28

Max RPM

3000

Skirt Diameter

0.49

Overall Length

6.25
