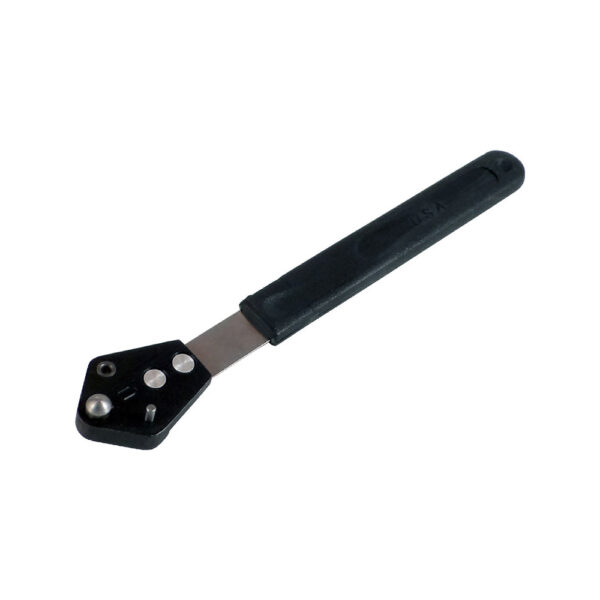

Omega Technologies’ Corner Wing Standard Nut Plate Jig (CWS) Description: Omega Technologies’ Corner Wing Standard Nut Plate Jigs were designed to facilitate accurate rivet hole drilling for standard Plate-Nuts. The terms Anchor-Nut, Plate-Nut, or Nut-Plate are frequently used interchangeably and refer to a group of fasteners consisting of a Threaded Nut Element which can be anchored to another structure. Omega Technologies’ Nut Plate Jigs are designed to exact tolerances and include drill bushings that reduce wear and consistent hole-spacing. Omega Technologies’ Nut Plate Jigs also feature a spring-steel band between the handle and the head to allow for finger positioning of the tool in cramped areas.

Technical Specifications: C) Hole Spacing: 0.500 (J) Hole Spacing: 0.7070 (P) Pilot Diameter: 0.2480 (K) Drill Size: #40

Suitable for Nut Plates: BACN11G4C-X-X-XX, K3000-4, MS21055-4, MS21056-4, MS21057-4, MS21058-4, MS21081-4, NA5-4, NAS684A-4, ST3M721-4

Equivalent Part Numbers: AT518U
