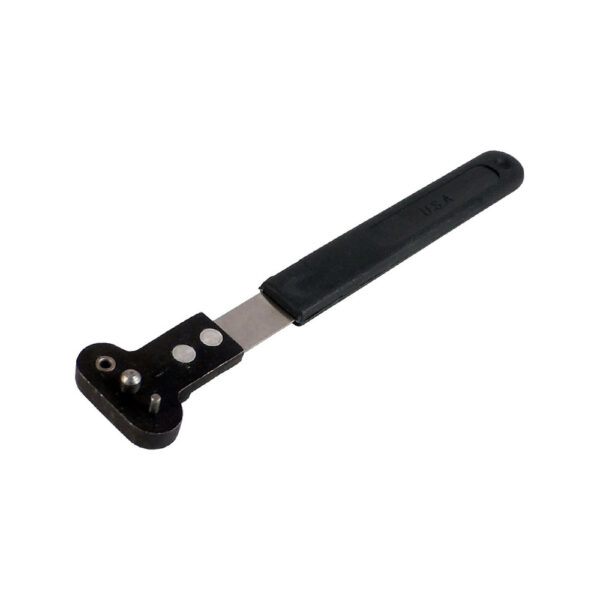

Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS). (C)Hole Spacing: 0.344” (J)Hole Spacing: 0.688” (P)Pilot Diameter: 0.1910” (K)Drill Size: #40
Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to facilitate accurate rivet hole drilling for standard Plate-Nuts. The terms Anchor-Nut, Plate-Nut, or Nut-Plate are frequently used interchangeably and refer to a group of fasteners consisting of a Threaded Nut Element which can be anchored to another structure. Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to exact tolerances and include drill bushings that reduce wear and consistent hole-spacing. Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) also features a spring-steel band between the handle and the head to allow for finger positioning of the tool in cramped areas.
Omega Technologies Catalog Page: 45
| (C)Hole Spacing | 0.344'' |
|---|---|
| (J)Hole Spacing | 0.688'' |
| (P)Pilot Diameter | 0.191'' |
| (K)Drill Size | #40 |
| Suitable for Nut Plates | AN366F-3, BACN10JB3, BACN10JR3, BACN10JT3, BACN10JZ3A-, BACN10KE3, BACN11G3A-X-X-XX, F5000-08, K1000-3, MS21047-3, MS21048-3, MS21049-3, MS21050-3, MS21059-3, MS21060-3, MS21077-3, MS21078-3, NA1-3, NAS1023A-3, NAS680N-3, ST3M443-3, ST3M719-3 |
Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to facilitate accurate rivet hole drilling for standard Plate-Nuts. The terms Anchor-Nut, Plate-Nut, or Nut-Plate are frequently used interchangeably and refer to a group of fasteners consisting of a Threaded Nut Element which can be anchored to another structure. Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to exact tolerances and include drill bushings that reduce wear and consistent hole-spacing. Omega Technologies NPJ518C #40 Two-Lug Double Wing Standard Nut Plate Jig (DWS) also features a spring-steel band between the handle and the head to allow for finger positioning of the tool in cramped areas.
Omega Technologies Catalog Page: 45
| (C)Hole Spacing | 0.344'' |
|---|---|
| (J)Hole Spacing | 0.688'' |
| (P)Pilot Diameter | 0.191'' |
| (K)Drill Size | #40 |
| Suitable for Nut Plates | AN366F-3, BACN10JB3, BACN10JR3, BACN10JT3, BACN10JZ3A-, BACN10KE3, BACN11G3A-X-X-XX, F5000-08, K1000-3, MS21047-3, MS21048-3, MS21049-3, MS21050-3, MS21059-3, MS21060-3, MS21077-3, MS21078-3, NA1-3, NAS1023A-3, NAS680N-3, ST3M443-3, ST3M719-3 |
