Omega Technologies’ Side Lug Miniature Nut Plate Jig 4 Piece Set (SLM) Description: Omega Technologies’ Side Lug Miniature Nut Plate Jigs were designed to facilitate accurate rivet hole drilling for standard Plate-Nuts. The terms Anchor-Nut, Plate-Nut, or Nut-Plate are frequently used interchangeably and refer to a group of fasteners consisting of a Threaded Nut Element which can be anchored to another structure. Omega Technologies’ Nut Plate Jigs are designed to exact tolerances and include drill bushings that reduce wear and consistent hole-spacing. Omega Technologies’ Nut Plate Jigs also feature a spring-steel band between the handle and the head to allow for finger positioning of the tool in cramped areas.

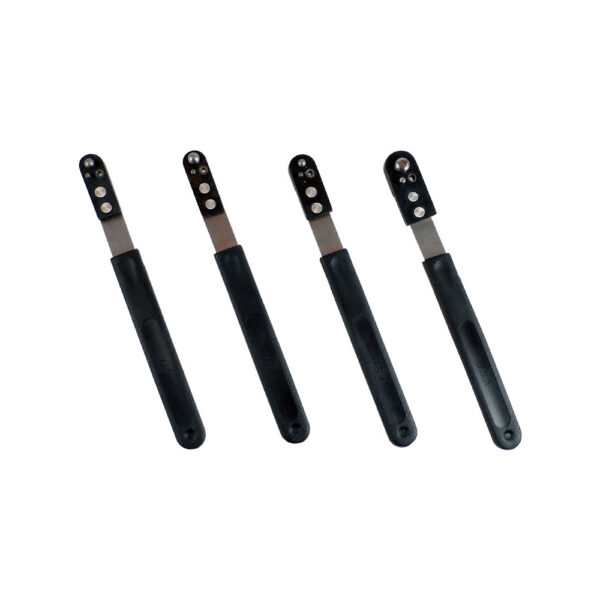

Side Lug Miniature Nut Plate Jig 4 Piece Set (SLM) Includes:

NPJ518TA – Equivalent Part Number AT518TA

Technical Specifications:

NPJ518TB – Equivalent Part Number AT518TB

Technical Specifications:

NPJ518TC – Equivalent Part Number AT518TC

Technical Specifications:

• (C) Hole Spacing: 0.312
• (J) Hole Spacing: 0.250
• (P) Pilot Diameter: 0.3120
• (K) Drill Size: #40

NPJ518NAS-D-A08 – Equivalent Part Number AT518NAS-D-A08

Technical Specifications:

• (C) Hole Spacing: 0.234
• (J) Hole Spacing: 0.219
• (P) Pilot Diameter: 0.1640
• (K) Drill Size: #40

Technical Specifications: Number of Pieces: 4

Equivalent Part Numbers: AT518TA, AT518TB, AT518TC, AT518NAS-D-A08
