Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) Technical Specifications:

• Length of Stroke: 1”
• Max. Cutting Capacity at 90° (wood): 5-5/16”
• Max. Cutting Capacity at 90° (steel): 3/8”
• Max. Cutting Capacity at 90° (aluminum): 25/32”
• Strokes Per Minute (variable speed): 0 – 2,600 SPM
• Blade Shank: ”T” Tang
• Battery: 18V LXT® Lithium-Ion
• Overall Length: 10-1/8”
• Net Weight (with battery): 6.4 lbs
• Variable speed dial: No
• Orbital settings: Yes
• Tool-less blade change: Yes
• Power Type: Cordless
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushed
• Shipping Weight: 14.7 lbs
• UPC Code: 088381-662772

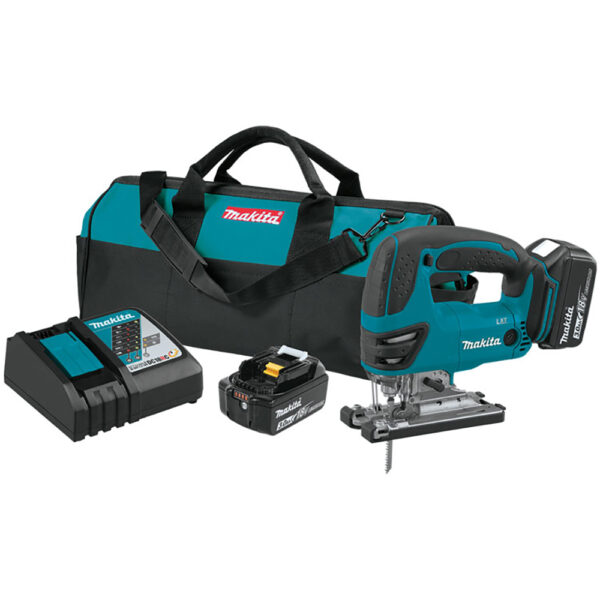

Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) Description

The Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah), a powerful and precise cutting tool that offers exceptional performance with the lowest overall weight in its class. Designed to deliver precision and comfort, the Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) provides an unparalleled jig saw cutting experience with reduced vibration and noise, granting users more control and comfort.

As part of Makita’s expansive 18V Lithium-Ion series, the Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) is powered by an 18V Lithium-Ion slide-style battery, making it compatible with the world’s largest cordless tool lineup. Makita’s 18V Lithium-Ion batteries boast the fastest charge times in their categories, ensuring more productivity by spending less time on the charger.

To enhance tool performance and extend battery life, Makita has incorporated Star Protection Computer Controls™. This innovative communication technology enables real-time data exchange between the Star Protection-equipped tool and battery, continuously monitoring conditions during use to safeguard against overloading, over-discharging, and overheating. The Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries featuring the star symbol, indicating Star Protection compatibility.

Featuring a Makita-built high torque motor, the Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) delivers a 1” stroke and 0-2,600 strokes per minute (SPM), ensuring fast and efficient cutting. With reduced vibration and noise levels, this cordless jig saw offers improved control and comfort. Its four-position cut settings (three orbital and one straight) enable swift and efficient cutting in various applications, while the “tool-less” push-in lock system allows for quick blade changes. The blade roller guide, positioned close to the workpiece, ensures precision accuracy in both straight and bevel cuts.

Weighing just 6.1 lbs. with a compact design measuring 10-1/8” long, the Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) minimizes operator fatigue and provides a comfortable grip, reducing strain during extended use. The two-finger variable speed trigger switch offers easy handling, even with gloved hands. Equipped with a built-in L.E.D. light, it illuminates the work area for enhanced visibility.

With less noise, vibration, and weight, the Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) prioritizes control and comfort. It is engineered for professional woodworkers, cabinetry makers, and specialized residential construction workers who demand a best-in-class cordless jig saw. The Makita-built variable speed motor delivers 0-2,600 strokes per minute, enabling faster and more efficient cutting. The tool offers three orbital settings plus straight cutting for versatile use across a wide range of materials. The “tool-less” blade change lever facilitates faster blade installation and removal, maximizing productivity. The heavy-gauge, precision-machined base ensures smooth cutting and added durability. The base can bevel and lock from 0°-45° left or right, enabling precise bevel cuts. A built-in dust blower clears the line of cut, enhancing cutting accuracy.

The Makita XVJ03 18V LXT Lithium-Ion Cordless Jig Saw Kit (3.0Ah) weighs only 6.4 lbs. with the battery, reducing operator fatigue. The rubberized soft grip handle provides increased comfort during prolonged use. Equipped with Star Protection Computer Controls™, it ensures protection against overloading, over-discharging, and over-heating.
