Technical Specifications

• Collet: 1/4”
• No Load Speed (variable speed): 10,000 – 30,000 RPM
• Battery: 18V LXT® Lithium-Ion
• Overall Length: 5-1/4”
• Net Weight (with battery): 4.6 lbs
• Base: Fixed
• Variable speed dial: Yes
• LED light: Yes
• Constant speed control: Yes
• Power Type: Cordless
• Plunge Capacity: 1-9/16”
• Form Factor (LXT): Compact
• Motor Type: Brushless
• Shipping Weight: 4.85 lbs
• UPC Code: 088381-844420

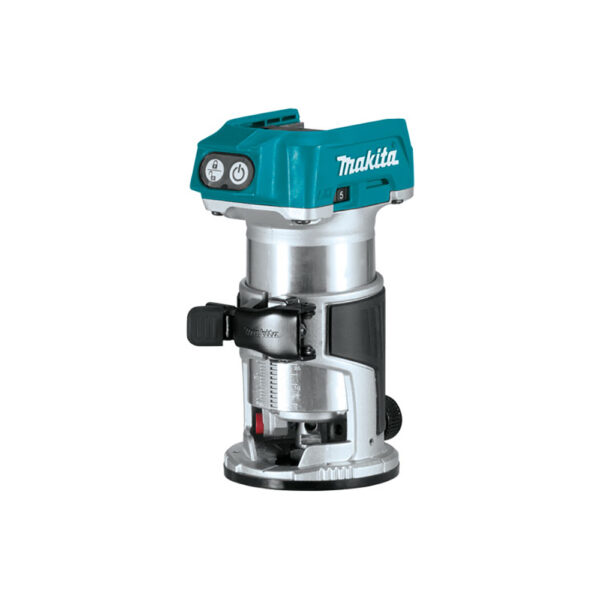

Makita XTR01Z 18V LXT Lithium-Ion Brushless Cordless Compact Router, Tool Only Description

The Makita XTR01Z 18V LXT Lithium-Ion Brushless Cordless Compact Router, Tool Only is where corded power meets cordless convenience. Powered by an efficient Makita BL™ Brushless Motor, this router offers up to 50% longer run time, increased power, speed, and extended tool life.

Compatible with Makita 18V LXT Lithium-Ion batteries (sold separately), the Makita XTR01Z 18V LXT Lithium-Ion Brushless Cordless Compact Router, Tool Only is engineered to tackle a full range of cabinetry and woodworking applications. It features a variable speed control dial ranging from 10,000 to 30,000 RPM, allowing you to match the speed precisely to your application. The electronic speed control ensures a constant speed under load, while the soft start feature enables smoother start-ups and improved accuracy.

Convenience is key, and this router delivers with a smooth rack-and-pinion fine depth adjustment system for precise settings. The dual L.E.D. lights illuminate the work surface, and the quick release cam lock system allows for convenient depth adjustments and easy base removal/installation. Additional bases and attachments are available for separate purchase, providing increased versatility.

For users of corded Makita Compact Routers (models RT0700C, RT0701C), the bases used with those routers are fully compatible with the Makita XTR01Z 18V LXT Lithium-Ion Brushless Cordless Compact Router, Tool Only. Seamlessly transition to cordless power without any hassle.

Connect the Makita XTR01Z 18V LXT Lithium-Ion Brushless Cordless Compact Router, Tool Only to Makita vacuum cleaners with the optional dust nozzle for improved dust extraction, creating a cleaner work environment. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Experience the rapid charge times of Makita 18V Lithium-Ion batteries, allowing them to spend more time working and less time on the charger.

Makita’s Star Protection Computer Controls™ enhance tool performance and extend battery life. This advanced communication technology enables real-time data exchange between the tool and battery, monitoring conditions during use to protect against overloading, over-discharging, and overheating. The router is compatible with Makita 18V LXT® and Compact Lithium-Ion batteries featuring the star symbol, providing increased versatility.

Featuring a Makita-built brushless motor, this router delivers faster and more accurate cuts across a variety of materials. The electronically-controlled BL™ Brushless Motor efficiently utilizes energy, adjusting torque and RPM to meet the demands of the application. The variable speed control dial allows you to match the speed precisely, while the electronic speed control maintains a constant speed under load.

For user and workpiece protection, the on/off button with a separate lock button prevents accidental start-ups. The slim and ergonomically designed body, coupled with the rubberized grip, ensures increased comfort and control during operation. The aluminum housing and base contribute to increased durability and accuracy, while the dual L.E.D. lights illuminate the work area for enhanced visibility.

Experience improved handling and performance with the high visibility base design. This router accepts industry-standard template guides and allows for quick base removal to install other bases. The non-marring high-durability base insert provides increased workpiece protection, while the shaft lock allows for quick and easy bit changes. The easy-to-read depth scales and compatibility with 1/4” shank router bits further enhance usability.

With a compact and ergonomic design, this router stands at 8-7/8” tall and weighs only 4.
