Makita XRH12ZW 18V LXT Lithium-Ion Brushless Cordless 11/16” SDS-PLUS AVT Rotary Hammer, w/ HEPA Dust Extractor, AWS Capable, Tool Only Technical Specifications:

• Max Cap. (concrete drilling): 11/16”
• Optimum Range (concrete): 5/32” – 3/8”
• Impact Energy (Joules): 1.7 J
• Impact Energy (ft.lbs.): 1.2
• Blows Per Min. (var. speed): 0 – 5,000 BPM
• No Load Speed (var. speed): 0 – 1,350 RPM
• Vibration (m/s²): 11
• HEPA filter: Yes
• Container Hole Count Cap.: 36 holes of dimension 3/8”x2-3/8”
• Filter Life (# of fillings): 200
• Battery: 18V LXT® Lithium-Ion
• Overall Length: 11-7/8”
• Net Weight (with battery): 7.5 lbs.
• Bit Type: Accepts SDS-PLUS
• Power Type: Cordless
• Bind-Up Control: No
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushless
• Auto-start Wireless System: Capable (transmitter sold separately)
• Shipping Weight: 10.34 lbs.
• UPC Code: 088381-873789

Makita XRH12ZW 18V LXT Lithium-Ion Brushless Cordless 11/16” SDS-PLUS AVT Rotary Hammer, with HEPA Dust Extractor, AWS Capable, Tool Only Description

The Makita XRH12ZW 18V LXT Lithium-Ion Brushless Cordless 11/16” SDS-PLUS AVT Rotary Hammer, with HEPA Dust Extractor, AWS Capable, Tool Only is a cordless concrete solution offering maximum efficiency and convenient dust extraction with its AWS capability.

Featuring an efficient HEPA filter that captures 99.97% of particulates .3 microns and larger, this rotary hammer ensures a clean and safe work environment. The compatible Dust Extractor Attachment (DX05), equipped with a HEPA Filter, is OSHA Table 1 compliant, providing peace of mind.

Powered by 18V LXT technology and an efficient brushless motor, the XRH12ZW delivers exceptional power, speed, and runtime, comparable to corded demands but without the need for a cord. It offers three modes of operationrotation only, hammering with rotation, and hammering onlyfor versatile use. The variable speed trigger allows precise speed control for optimal performance.

Ideal for a range of trades, including mechanical, electrical, plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, and maintenance operations, this rotary hammer accepts SDS-PLUS bits to handle various drilling tasks.

The XRH12ZW is AWS capable, utilizing the Auto-Start Wireless System that employs Bluetooth technology for wireless power-on/off communication between the tool and an equipped dust extractor. Activating AWS is as simple as installing the Auto-Start Wireless Transmitter (sold separately) and synchronizing it with an AWS-equipped dust extractor (sold separately). To enhance user comfort and reduce vibration, the XRH12ZW is equipped with Anti-Vibration Technology (AVT), which employs air pressure to actively counterbalance vibrations without compromising performance.

As part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries, this rotary hammer benefits from the fastest charge times in its category. Makita’s Star Protection Computer Controls™ ensure improved tool performance and extended battery life by enabling real-time data exchange and monitoring conditions during use to protect against overloading, over-discharging, and overheating.

The XRH12ZW’s on-board dust extractor is OSHA Table 1 compliant and features a filter cleaning mechanism to maintain optimum suction efficiency during concrete drilling. The extractor is activated by the tool and powered by the motor fan blade, ensuring effective concrete dust suction performance. The efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger for a cleaner workspace.

With features like the BL™ Brushless Motor for longer life, torque limiting clutch for gear protection, constant speed control for challenging jobs, electric brake for quick repositioning, and built-in LED light to illuminate the work area, this rotary hammer offers enhanced functionality and convenience. Weighing only 7.5 lbs. with the dust extractor and battery (battery not included), it minimizes operator fatigue.

For optimal performance, use the XRH12ZW with genuine Makita batteries and chargers. The tool is backed by a 3-year limited warranty, ensuring reliability and durability. Battery and charger are sold separately.

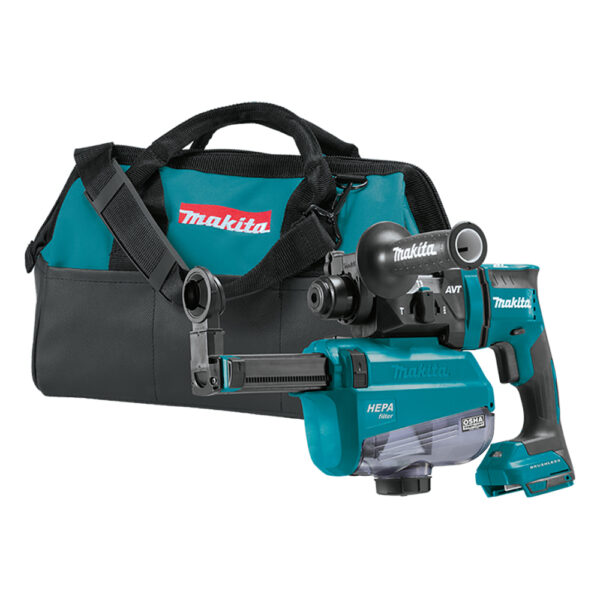

Makita XRH12ZW 18V LXT Lithium-Ion Brushless Cordless 11/16” SDS-PLUS AVT Rotary Hammer, w/ HEPA Dust Extractor, AWS Capable, Tool Only includes:

• (1) 18V LXT® Brushless 11/16” SDS-PLUS AVT® Rotary Hammer, AWS® Capable (XRH12Z)
• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX05)
• (1) Sealing Cap (424474-5)
• (1) Tool bag
• (1) Side Handle
• (1) Depth Gauge
