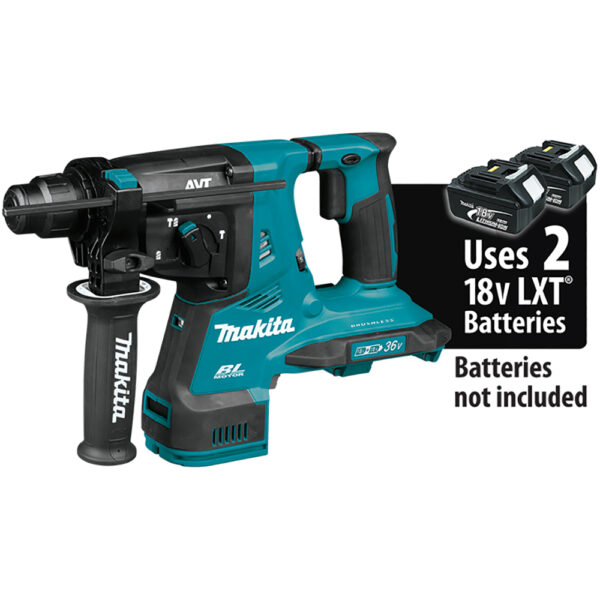

Makita XRH10Z 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable, Tool Only Technical Specifications:

• Max Cap. (concrete drilling): 1-1/8”
• Optimum Range (concrete): 3/16” – 5/8”
• Max Cap (concrete w/ core): 2-1/8”
• Impact Energy (ft.lbs.): 2.3
• Impact Energy (Joules): 3.2 J
• Blows Per Min. (var. speed): 0 – 5,000 BPM
• No Load Speed (var. speed): 0 – 980 RPM
• Vibration Control: Yes
• Vibration (m/s²): 9
• Battery: 2X 18V LXT® Lithium-Ion
• Overall Length: 14-3/4”
• Net Weight (with battery): 9.9 lbs.
• Bit Type: Accepts SDS-PLUS
• Power Type: Cordless
• Auto-start Wireless System: Capable (transmitter sold separately)
• Bind-Up Control: Yes
• Dimensions (LxWxH): 14-3/4” x 5-1/4” x 9-1/8”
• Form Factor (LXT): X2
• Motor Type: Brushless
• Shipping Weight: 9.26 lbs.
• UPC Code: 088381-861939

Makita XRH10Z 36V (18V X2) LXT® Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable, Tool Only Description

The Makita XRH10Z 36V (18V X2) LXT® Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable, Tool Only is a cordless concrete solution engineered with advanced technology to maximize efficiency and offer convenient dust extraction. Powered by two 18V LXT® batteries and a highly efficient brushless motor, this rotary hammer provides unmatched power, speed, and runtime for corded demands, without the hassle of cords. With X2 LXT technology, it can deliver an impressive performance of up to 140 1/2” x 2-3/8” holes per charge when used with two 18V LXT 5.0Ah batteries (sold separately).

To ensure a clean working environment, this rotary hammer is compatible with the optional OSHA Table 1 compliant on-board dust extractor attachment (model DX08, sold separately). The dust extractor features a filter-cleaning mechanism that maintains optimum suction efficiency. When activated, the trigger-activated dust extractor, powered by a separate motor, enhances suction without compromising the rotary hammer’s performance. Its rubber suction gasket ensures consistent contact with the work surface, channeling dust to the clear dust container equipped with a HEPA filter that captures 99.97% of dust particles as small as 0.3 microns.

Designed for reduced vibration, the XRH10Z features Anti-Vibration Technology (AVT®). This innovative internal counterbalance system utilizes air pressure to move counterweight pistons in the opposite direction of the drive piston, actively minimizing vibration. Combined with the vibration-absorbing back handle and side handle, this rotary hammer achieves an impressive low vibration rating of only 9m/s², all while maintaining exceptional performance. The efficient brushless motor delivers a robust 2.3 ft. lbs. of impact energy, with a variable speed range of 0-980 RPM and 0-5,000 BPM.

To ensure user safety and tool longevity, the XRH10Z incorporates both mechanical and electronic technologies. The Active Feedback-sensing Tech utilizes an on-board accelerometer to detect sudden stops in bit rotation and automatically shuts off the motor, preventing damage. Additionally, the torque limiting clutch disengages gears if the bit binds, safeguarding against gear damage. These features, along with constant speed control, allow for seamless operation under demanding conditions.

The XRH10Z is packed with practical features, including an electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook for added convenience. Its 3-mode operation provides versatility for different applications, offering ”Rotation Only,” ”Hammering with Rotation,” or ”Hammering Only” modes.

Built to withstand harsh job site conditions, this rotary hammer features Extreme Protection Technology (XPT™), providing improved dust and water resistance. It is an ideal choice for various trades, including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits, ensuring compatibility with a wide range of accessories.

The XRH10Z is part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita’s 18V Lithium-Ion batteries are renowned for their rapid charge times, allowing for more work and less downtime. With the Star Protection Computer Controls™ technology, this rotary hammer optimizes tool performance and extends battery life. Real-time data exchange between the tool and battery protects against overloading, over-discharging, and overheating.

For increased versatility, the XRH10Z can be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol, indicating the presence of Star Protection technology.

Experience the Makita XRH10Z 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable, Tool Only, and elevate your concrete drilling capabilities to new heights. Please note that batteries and charger are sold separately. The product is backed by a 3-year limited warranty. For optimal performance and compatibility, use genuine Makita batteries and chargers.

Makita XRH10Z 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer, AFT, AWS Capable, Tool Only includes:

• (1) Side Handle
• (1) Depth Gauge
