Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, w/ HEPA Dust Extractor (5.0Ah) Technical Specifications:

• Max Cap. (concrete drilling): 1-1/8”
• Optimum Range (concrete): 3/16” – 5/8”
• Max Cap (concrete w/ core): 2-1/8”
• Impact Energy (ft.lbs.): 2.3
• Impact Energy (Joules): 3.2 J
• Blows Per Min. (var. speed): 0 – 5,000 BPM
• No Load Speed (var. speed): 0 – 980 RPM
• HEPA filter: Yes
• Container Hole Count Cap.: 25 holes of dimension 5/8”x2”
• Filter Life (# of fillings): 200
• Vibration Control: Yes
• Vibration (m/s²): 9
• Battery: 2X 18V LXT® Lithium-Ion
• Overall Length: 14-3/4”
• Net Weight (with battery): 10.8 lbs.
• Bit Type: Accepts SDS-PLUS
• Bind-Up Control: No
• Form Factor (LXT): X2
• Motor Type: Brushless
• Shipping Weight: 27.3 lbs.
• UPC Code: 088381-878333

Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, with HEPA Dust Extractor (5.0Ah) Description

The Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, with HEPA Dust Extractor (5.0Ah) is a cordless concrete solution packed with advanced engineering to deliver maximum efficiency and convenient dust extraction.

Powered by two 18V LXT batteries and an efficient brushless motor, this rotary hammer provides exceptional power, speed, and runtime, comparable to corded demands but without the hassle of a cord. With X2 LXT technology, it can deliver up to 140 1/2” x 2-3/8” holes per charge using two 18V LXT 5.0Ah batteries.

The kit includes an on-board dust extractor attachment that is OSHA Table 1 compliant, featuring a filter-cleaning mechanism to maintain optimum suction efficiency. The trigger-activated dust extractor, powered by a separate motor, enhances suction efficiency without compromising the performance of the rotary hammer. The rubber suction gasket ensures consistent contact with the work surface, channeling dust to the clear dust container equipped with a HEPA filter that captures 99.97% of dust particles as small as 0.3 microns.

An impressive feature is the 3-second delay on the vacuum motor, which collects remnant dust and particles as the bit is being pulled out of the work surface, making it ideal for overhead drilling. The dust extractor attachment is removable, allowing the rotary hammer to be used with separate attachments and dust extractors (sold separately).

To minimize vibration, the Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, w/ HEPA Dust Extractor (5.0Ah) is equipped with Anti-Vibration Technology (AVT). This internal counterbalance system uses air pressure to actively reduce vibration, ensuring increased comfort during use. The vibration-absorbing back handle and side handle further contribute to a low vibration rating of only 9m/s², while the efficient brushless motor delivers a full 2.3 ft. lbs. of impact energy, with 250-980 RPM and 0-5,000 BPM.

The torque limiting clutch automatically disengages the gears if the bit binds, preventing gear damage, while constant speed control adds power to the motor to maintain speed under load, tackling even the most demanding jobs. The electric brake allows for quick repositioning, maximizing productivity.

Additional performance features include a variable speed dial and trigger for application-specific speed control, a built-in LED light to illuminate the work area, and a retractable tool hook for convenient storage. The rotary hammer is also engineered with Extreme Protection Technology (XPT) to improve dust and water resistance, ensuring durability in harsh job site conditions.

The Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, w/ HEPA Dust Extractor (5.0Ah) is suitable for various trades, including mechanical, electrical, plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, and maintenance operations. It accepts SDS-PLUS bits for versatility.

Part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries, this rotary hammer benefits from the fastest charge times in its category. The Star Protection Computer Controls™ enable real-time data exchange between the tool and battery to protect against overloading, over-discharging, and overheating. The tool can also be powered by Makita 18V LXT and Compact Lithium-Ion batteries with the star symbol, further enhancing its versatility.

The kit includes the 18V LXT Lithium-Ion 5.0Ah battery (BL1850B), which features an integrated LED battery charge level indicator. The battery reaches a full charge in 45 minutes or less when used with the Rapid Optimum Charger. Speaking of which, the Rapid Optimum Charger actively controls current, voltage, and temperature to optimize battery life. It even has a built-in fan for faster, more efficient charging.

Makita’s commitment to quality is reflected in the 3-year limited warranty provided for the tool, battery, and charger. To ensure optimal performance, use genuine Makita batteries and chargers. Upgrade your concrete drilling experience with the Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, with HEPA Dust Extractor (5.0Ah).

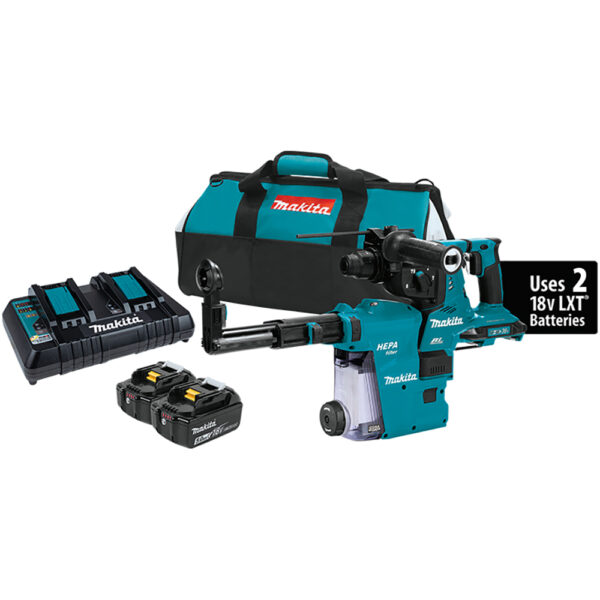

Makita XRH08PTW 36V (18V X2) LXT Brushless 1-1/8” SDS-PLUS AVT Rotary Hammer Kit, w/ HEPA Dust Extractor (5.0Ah) includes:

• (1) 36V (18V X2) LXT® Brushless 1-1/8” SDS-PLUS AVT® Rotary Hammer (XRH08Z)
• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX08)
• (2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
• (1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
• (1) Dust Case with HEPA Filter Cleaning Mechanism (199588-6)
• (1) Side Handle
• (1) Depth Gauge
• (1) Tool Bag
