Makita XRH01ZWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer, w/ HEPA Dust Extractor Attachment, Tool Only Technical Specifications:

• Battery: 18V LXT® Lithium-Ion
• Max Cap. (concrete drilling): 1”
• Optimum Range (concrete): 3/16” – 1/2”
• Impact Energy (ft.lbs.): 1.7
• Impact Energy (Joules): 2.4 J
• Blows Per Min. (var. speed): 0 – 4,700 BPM
• No Load Speed (var. speed): 0 – 950 RPM
• HEPA filter: Yes
• Container Hole Count Cap.: 25 holes of dimension 5/8”x2”
• Filter Life (# of fillings): 200
• Vibration Control: No
• Vibration (m/s²): 13.5
• Bit Type: Accepts SDS-PLUS
• Overall Length: 17-1/2”
• Power Type: Cordless
• Bind-Up Control: Yes
• Active Feedback-sensing Tech: No
• Auto-start Wireless System: No
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushless
• Shipping Weight: 13.32 lbs.
• UPC Code: 088381-873079

Makita XRH01ZWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer, w/ HEPA Dust Extractor Attachment, Tool Only Description

The Makita XRH01ZWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer, w/ HEPA Dust Extractor Attachment, Tool Only is a cordless concrete drilling solution powered by an efficient Makita-built brushless motor, offering up to 50% longer run time, increased power, speed, and tool life.

With a versatile range of capabilities, the XRH01ZWX delivers impressive performance with a no-load speed of 0-950 RPM, BPM of 4,700, and an impact energy of 1.7 ft.lbs. Its 3-mode operation allows for rotation only, hammering with rotation, and hammer-only modes, providing flexibility to tackle various applications.

Designed for ease-of-use and efficiency, this rotary hammer features a large 2-finger trigger for enhanced convenience and comfort during operation. The depth adjustment guide ensures drilling depth accuracy, adding precision to your work. The XRH01ZWX comes with an on-board dust extractor that complies with OSHA Table 1 regulations. It includes a filter cleaning mechanism to maintain optimum suction efficiency, ensuring a clean and safe working environment.

As part of Makita’s expanding 18V LXT System, this tool is compatible with the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries are known for their rapid charge times, maximizing productivity by spending less time on the charger.

To enhance tool performance and extend battery life, Makita’s Star Protection Computer Controls™ facilitate real-time data exchange between the tool and battery, monitoring conditions during use to safeguard against overloading, over-discharging, and overheating.

The powerful BL™ Brushless motor delivers exceptional performance, running cooler and more efficiently for extended tool life. The on-board dust extractor, powered by a separate motor, ensures peak drilling performance and provides a 2-second delay to capture remaining dust effectively. The efficient HEPA filtration system captures 99.97% of particulates as small as 0.3 microns, maintaining a clean and healthy work environment.

The transparent dust container allows for easy visibility, determining when it needs to be emptied, while the torque-limiting clutch protects against gear damage by automatically disengaging gears if the bit binds. The variable speed trigger offers greater versatility, enabling the user to match the speed to the application.

With a job site tested shock-absorbent handle, the XRH01ZWX provides added durability by protecting the battery housing. Weighing only 10.3 lbs. (battery not included), this rotary hammer minimizes operator fatigue during prolonged use.

Please note that the battery and charger are sold separately. Remember to use only genuine Makita batteries and chargers to ensure optimal performance and safety. This product is backed by a 3-year limited warranty, providing peace of mind and assurance of quality. Experience the power, efficiency, and versatility of the Makita XRH01ZWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer with HEPA Dust Extractor Attachment and elevate your concrete drilling capabilities.

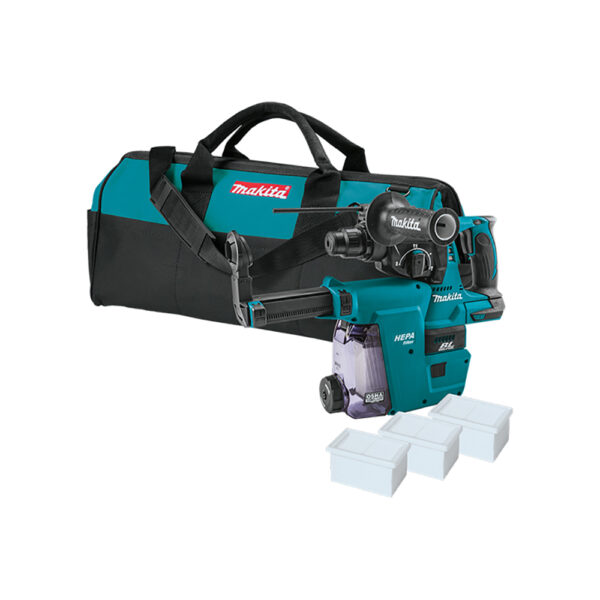

Makita XRH01ZWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer, w/ HEPA Dust Extractor Attachment, Tool Only includes:

• (1) 18V LXT® Brushless 1” SDS-PLUS Rotary Hammer (XRH01Z)
• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX06)
• (3) HEPA Filter (197556-3)
• (1) Side Handle (158057-6)
• (1) Depth Gauge (324219-0)
• (1) 20” Contractor Tool Bag (831303-9)
