Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) Technical Specifications:

• Battery: 18V LXT® Lithium-Ion
• Max Cap. (concrete drilling): 1”
• Optimum Range (concrete): 3/16” – 1/2”
• Impact Energy (ft.lbs.): 1.7
• Impact Energy (Joules): 2.4 J
• Blows Per Min. (var. speed): 0 – 4,700 BPM
• No Load Speed (var. speed): 0 – 950 RPM
• HEPA filter: Yes
• Container Hole Count Cap.: 25 holes of dimension 5/8”x2”
• Filter Life (# of fillings): 200
• Vibration Control: No
• Vibration (m/s²): 13.5
• Bit Type: Accepts SDS-PLUS
• Overall Length: 17-1/2”
• Power Type: Cordless
• Bind-Up Control: Yes
• Active Feedback-sensing Tech: No
• Auto-start Wireless System: No
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushless
• Shipping Weight: 14.065 lbs.
• UPC Code: 088381-882989

Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) Description

The Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) is a cordless concrete drilling solution powered by an efficient Makita-built brushless motor, providing up to 50% longer run time, increased power, speed, and tool life.

With a no-load speed of 0-950 RPM, a BPM of 4,700, and an impact energy of 1.7 ft.lbs, the Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) delivers exceptional performance for demanding applications. The HEPA Dust Extractor Attachment, conveniently triggered activated, ensures a clean and dust-free work environment.

Designed with a rubber suction gasket, this rotary hammer maintains consistent contact with the work surface, channeling dust into the clear dust container with a HEPA filter. The HEPA filter captures an impressive 99.97% of dust particles as small as 0.3 microns, providing excellent dust extraction capabilities.

The vacuum motor features a 2-second delay, collecting residual dust and particles as the bit is removed from the work surface. This feature makes the Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) ideal for overhead drilling applications. The high-capacity dust container offers an accurate level indicator and provides the largest material holding capacity in its class, allowing for faster and more convenient disposal.

The quick-release system allows for easy detachment of the dust container when not needed, enhancing the tool’s versatility. Multiple chisel positions enable comfortable alignment with various applications, ensuring precise and efficient work. The Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) is part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries are known for their fast charge times, minimizing downtime and maximizing productivity.

To enhance tool performance and prolong battery life, Makita’s Star Protection Computer Controls™ enable real-time data exchange between the tool and battery, monitoring conditions during use to protect against overloading, over-discharging, and overheating.

The powerful BL™ Brushless motor ensures optimal performance, longevity, and efficiency by eliminating carbon brushes and running cooler. This rotary hammer is compliant with OSHA Table 1 regulations for concrete drilling and features a filter cleaning mechanism to maintain optimum dust suction efficiency.

The Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah)’s separate motor-powered extractor maintains peak drilling performance while providing a 2-second delay for capturing remaining dust. The efficient HEPA filtration system captures 99.97% of particulates as small as 0.3 microns, ensuring a clean and safe working environment.

With a weight of only 10.3 lbs. (including the battery), this rotary hammer is designed to reduce operator fatigue during extended use. The shock-absorbent handle protects the battery housing, enhancing durability and ensuring long-lasting performance.

The included 18V LXT Lithium-Ion 5.0Ah battery (BL1850B) features an integrated L.E.D. battery charge level indicator for convenient monitoring. Compared to the BL1830, the BL1850B provides up to 65% more runtime per charge. The battery reaches a full charge in just 45 minutes or less with the Rapid Optimum Charger, which actively controls current, voltage, and temperature to optimize battery life.

The Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) is compatible with Makita 18V Lithium-Ion batteries featuring the Star symbol, offering increased versatility and compatibility. This product is backed by a 3-year limited warranty on the tool, battery, and charger, ensuring peace of mind and long-term reliability. Remember to use only genuine Makita batteries and chargers for optimal performance and safety. Battery and charger are sold separately.

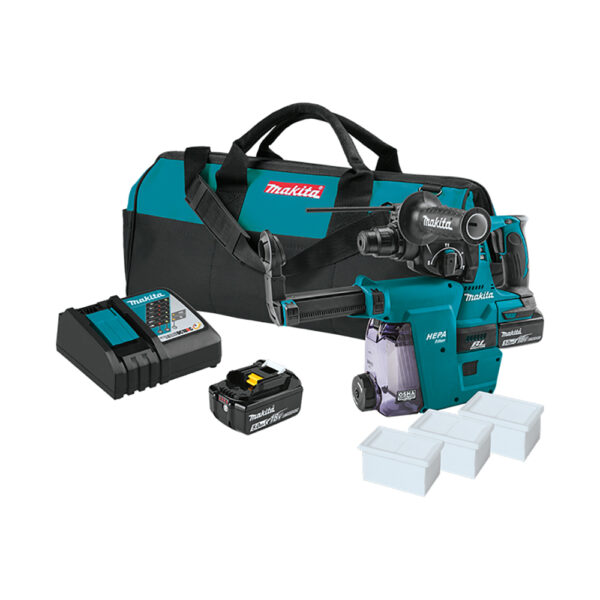

Makita XRH011TWX 18V LXT Lithium-Ion Brushless Cordless 1” SDS-PLUS Rotary Hammer Kit, w/ HEPA Dust Extractor Attachment (5.0Ah) includes:

• (1) 18V LXT® Brushless 1” SDS-PLUS Rotary Hammer (XRH01Z)
• (2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
• (1) 18V LXT® Lithium-Ion Rapid Optimum Charger (DC18RC)
• (1) Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX06)
• (3) HEPA Filter (197556-3)
• (1) Side Handle (158057-6)
• (1) Depth Gauge (324219-0)
• (1) 20” Contractor Tool Bag (831303-9)
