Technical Specifications

• Planing Width: 3-1/4”
• Planing Depth: 1/8”
• No Load Speed: 12,000 RPM
• Overall Length: 12-19/32”
• Battery: 18V LXT® Lithium-Ion
• Max. no load speed: 12,000 RPM
• Power Type: Cordless
• Net Weight: 6.5 lbs
• Form Factor (LXT): 18V LXT®
• Motor Type: Brushless
• Automatic-start Wireless System (AWS™): Capable (transmitter sold separately)
• Shipping Weight: 10.03 lbs
• UPC Code: 088381-890106

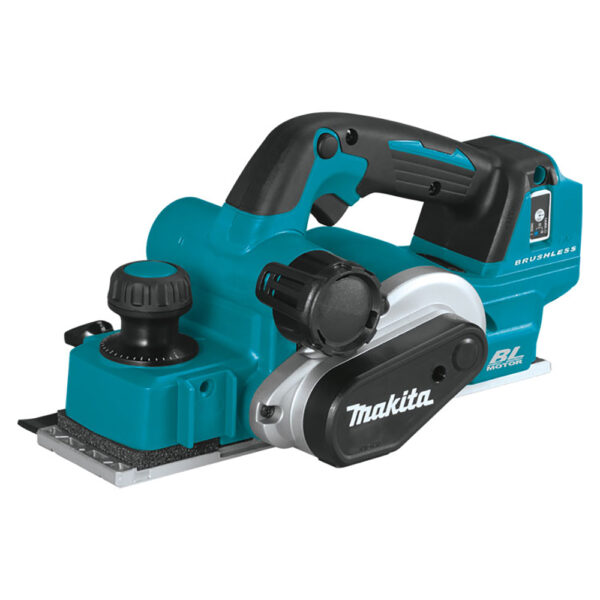

Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only Description

The Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only is designed to meet the needs of door and window installers, finish carpenters, deck installers, remodelers, and general contractors who require a brushless cordless planer. With a powerful 12,000 RPM, it enables fast stock removal and offers versatility for a wide range of applications.

The Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only can effortlessly plane up to 3-1/4” wide and 1/8” deep in a single pass, making it highly efficient. The Makita-built brushless motor eliminates carbon brushes, ensuring cooler and more efficient motor operation for extended tool life. Its 2-blade cutter head with double-edge carbide blades guarantees exceptional performance and a smooth finish.

For ease of use and enhanced safety, the planer features a spring-loaded stand that elevates the base, protecting the blades and workpiece. The click-depth adjustment knob comes with an easy-to-read scale, allowing precise depth adjustment from 0” to 7/64”. The precision-machined aluminum base ensures increased planning accuracy, and the tool offers three chamfering groove options for added convenience.

Chip ejection can be directed to either side of the tool, providing flexibility and convenience during operation. The ergonomic design, with rubberized soft grips on the front and rear handles, offers comfortable handling and balanced control. The easy blade setting system enables fast blade installation, while the electric brake maximizes productivity. The Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only is AWS Capable, allowing wireless power-on and power-off communication between the tool and an optional dust extractor. When connected via AWS, the equipped dust extractor automatically powers on or off in sync with the cordless tool, reducing noise and increasing productivity. AWS can be activated with the AWS Wireless Transmitter (part no. 198901-5, sold separately).

To ensure optimal performance and extended battery life, the planer is equipped with Star Protection Computer Controls™, which allow real-time data exchange between the tool and battery to monitor conditions and protect against overloading, over-discharging, and overheating. The planer is compatible with Makita 18V LXT Lithium-Ion Batteries with the star symbol, indicating Star Protection technology. For convenience and efficiency, the Rapid Optimum Charger (sold separately) communicates with the battery’s built-in chip to optimize the charging process, actively controlling current, voltage, and temperature.

The charger also features a built-in fan for faster and more efficient charging. Makita technology ensures category-leading charge times, minimizing downtime and maximizing productivity. The Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only weighs only 7.8 lbs. with the battery (battery sold separately), providing a high power-to-weight ratio for easy handling. It is backed by a 3-year limited warranty for added peace of mind. Please note that the battery and charger are sold separately. To ensure optimal performance and compatibility, always use genuine Makita batteries and chargers.

Upgrade your planing capabilities with the Makita XPK02Z 18V LXT Lithium-Ion Brushless Cordless 3-1/4” Planer, AWS Capable, Tool Only, and experience the power, efficiency, and reliability of Makita tools.
