Technical Specifications

• Max. nail/fastener length: 1-3/8” (23 ga.)
• Maximum Magazine Capacity: 120
• Battery: 12V max CXT® Lithium-Ion
• Overall Length: 9-1/8”
• Net Weight (with battery): 4 lbs
• Fastening category: Pin Power
• Type: Cordless
• Shipping Weight: 4.63 lbs
• UPC Code: 088381-839273

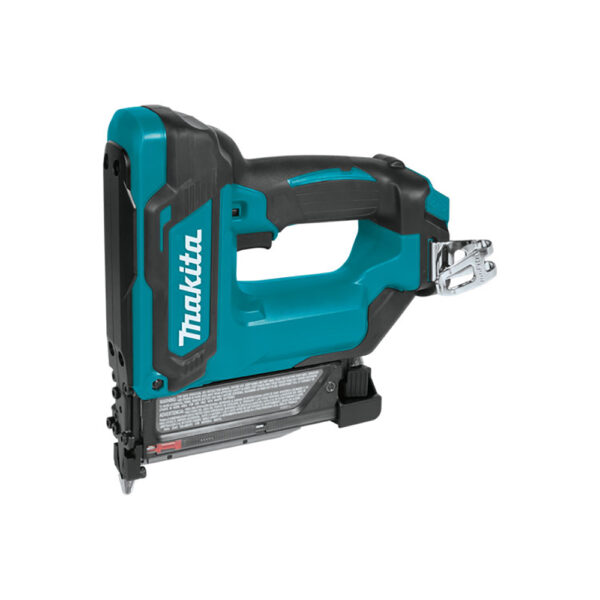

Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only Description

The Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only, the ultimate hose-free solution for finish and trim work. This compact and powerful nailer delivers exceptional performance, driving up to 1,250 pins on a single charge of a 12V CXT 2.0Ah battery (sold separately). With a magazine capacity of up to 120 pins, it can accommodate six different lengths of 23 gauge pins (5/8”, 11/16”, 3/4”, 1”, 1-3/16”, 1-3/8”).

Equipped with an anti-dry fire mechanism, the TP03Z is engineered to prevent driving blanks and protect the work surface from damage. The tool-less depth adjustment ensures precise flush and countersink finishes, while the contact trigger enhances accuracy and precision. The built-in L.E.D. light illuminates the work area, and the rubberized soft grip handle provides increased comfort during extended use.

Designed for improved balance and ergonomics, the Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only is compatible with Makita 12V max CXT Lithium-Ion slide-style batteries (sold separately). These batteries feature an on-board L.E.D. charge level indicator for added convenience. For longer run time, the nailer is also compatible with the 12V max CXT Lithium-Ion 4.0Ah battery (BL1041B).

The Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only features a refined firing mechanism that reduces recoil and the force required on the work surface when driving pins. Its cordless design eliminates the need for a compressor and air hose, providing increased convenience on the job. The rubber bumpers protect both the tool and the work surface from damage, while the reversible tool hook allows for easy accessibility.

With a compact and ergonomic design, measuring only 9-1/8” in length, and weighing just 4.0 lbs. with a 2.0Ah battery (battery not included), the Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only ensures reduced operator fatigue and enhanced maneuverability in confined areas. It is part of the expanding 12V max CXT® series, which combines performance with superior ergonomics in a compact size.

Please note that the Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only is not compatible with 12V max pod-style tools, batteries, and chargers. The tool is backed by a 3-year limited warranty. To guarantee optimal performance, it is recommended to use genuine Makita batteries and chargers. Experience the freedom and efficiency of the Makita TP03Z 12V max CXT Lithium-Ion Cordless Pin Nailer, 23 Ga., Tool Only, and elevate your finish and trim work to new levels of precision and convenience.
