Technical Specifications

• Battery: 12V max CXT® Lithium-Ion
• Line accuracy (at 33′): +/- 1/8”
• Line beam direction: 2 line (horizontal, vertical)
• Working range (line): 82′
• Working Range with Detector: 262′
• Operating time (hours): 20
• Laser diode: Class II, 635 nm
• Leveling range: 4°
• Debris resistance: IP54 rating (dust & water resistance)
• Auto shut off: No
• Net Weight: 1.9 lbs
• Laser Beam Color: Red
• Shipping Weight: 6.7 lbs
• UPC Code: 088381-878173

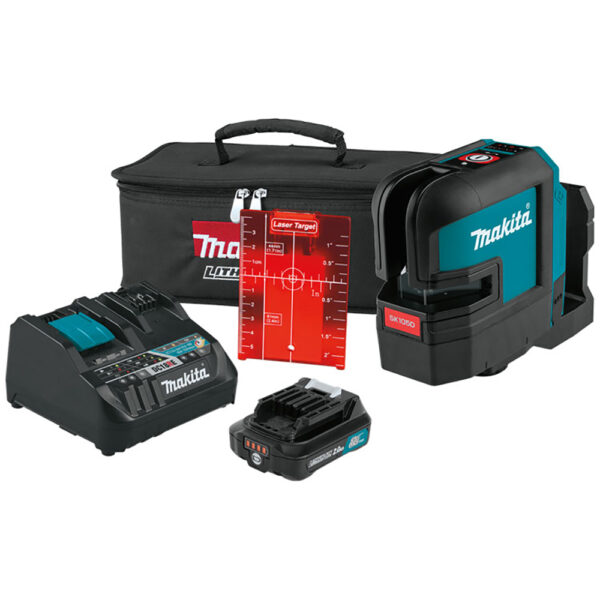

Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) Description

The Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) is a reliable and versatile solution for level, align, and plumb applications. Designed to meet the varying measurement needs in construction, this cordless laser kit empowers users with flexibility and accuracy.

Featuring a bright 635 nm class II red laser, the Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) delivers a best-in-class accuracy of +/-1/8” at 33 feet. The laser’s line visibility range extends up to 82 feet, depending on ambient light, and it is detectable up to an impressive 262 feet when paired with the Makita Laser Detector (sold separately). This ensures clear and visible reference lines for your projects.

With a laser line fan angle that spans past the 180° horizontal line and 160° vertical line positions, this laser kit provides comprehensive coverage for full reference lines. Achieve precise alignment and accurate measurements with ease.

Benefit from fast self-leveling line stability, which is achieved in just 3 seconds, enhancing productivity on the job site. The integrated pendulum lock adds slope incline application capabilities and ensures the protection of the laser diode during transportation and storage.

The Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) is built to withstand demanding conditions, boasting an IP54 rating for dust and water resistance. The laser windows are highly protected and recessed into the housing, ensuring durability and longevity. The rubberized housing over-mold provides increased protection against impacts, adding to the overall ruggedness of the laser.

Enjoy extended run time with the included Makita 12V max CXT 2.0Ah rechargeable battery, offering up to 20 hours of continuous usage. For even longer operation, the optional 12V max CXT 4.0Ah battery provides an impressive 40 hours of continuous run time. The 12V max CXT Lithium-Ion batteries are engineered with a Battery Protection Circuit, safeguarding against overloading, over-discharging, and over-heating, ensuring optimal battery life.

As part of the expanding 12V max CXT series, the Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) laser kit combines performance with superior ergonomics in a compact size. It fits comfortably in your hand, allowing for precise handling and easy maneuverability, even in tight spaces.

For users in the 18V LXT battery platform, this laser kit offers a power connector port that enables the use of an 18V LXT battery with the Power Source Adapter (ADP05) and Adapter Cord (sold separately). This provides added convenience and compatibility with existing tools and batteries.

The Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) offers a simplified one-button user interface for effortless operation. Its low laser brightness mode helps conserve battery power, extending the run-time performance for uninterrupted workflow.

Equipped with a multi-purpose magnetic bracket featuring integrated 1/4” and 5/8” threads, you can easily attach the laser to metal surfaces, wood surfaces, or Makita Tripods (TK0LM1001F and TK0LM5030F), providing versatile and secure positioning on any job site.

Please note that the Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) is not compatible with 12V max pod-style tools, batteries, and chargers. The kit is backed by a 3-year limited warranty on the tool, battery, and charger, ensuring confidence and peace of mind in your purchase.

Ensure optimal performance and safety by using only genuine Makita batteries and chargers. Experience the power, accuracy, and durability of the Makita SK105DNAX 12V max CXT Lithium-Ion Cordless Self-Leveling Cross-Line Red Beam Laser Kit (2.0Ah) and elevate your construction projects to new levels of precision.
