Technical Specifications

• Max. Capacity (concrete drilling): 9/16”
• Optimum Range (concrete drilling): 5/32” – 3/8”
• Impact Energy (Joules): 1 J
• Impact Energy (ft.lbs.): .73
• Vibration (m/s²): 6.5
• No Load Speed (variable speed): 0 – 850 RPM
• Blows Per Minute (variable speed): 0 – 4,900 BPM
• Battery: 12V max CXT® Lithium-Ion
• Overall Length: 9-11/16”
• Net Weight (with battery): 4.3 lbs
• Bit Type: Accepts SDS-PLUS
• Shipping Weight: 11 lbs
• UPC Code: 088381-849173

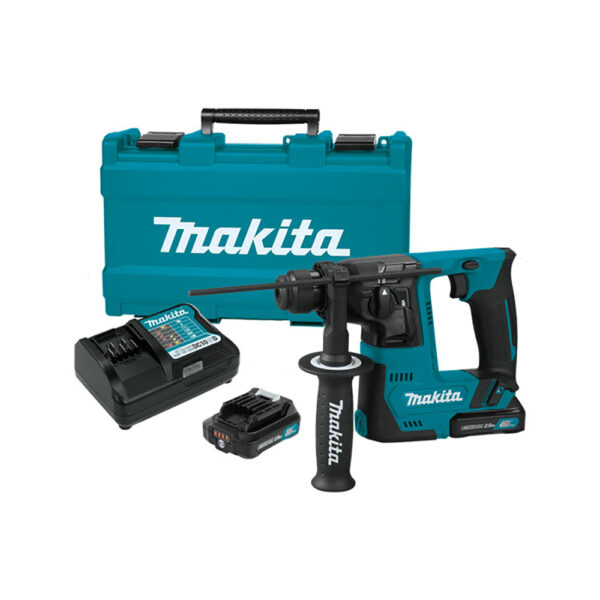

Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) Description

The Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) is a powerful and versatile tool that delivers exceptional performance in a compact size. Designed for work in tight spaces and overhead applications, this rotary hammer provides power and speed to tackle a wide range of drilling tasks. With Makita 12V max CXT® Lithium-Ion slide-style batteries, users experience superior balance and ergonomics compared to pod-style batteries. The on-board L.E.D. charge level indicator adds convenience by providing real-time battery status.

Equipped with a Makita-built variable speed motor, the Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) delivers 0-850 RPM, 0-4,900 BPM, and 0.73 ft.lbs./1.0 Joules of impact energy, ensuring faster drilling and efficient performance. It offers 2-mode operation, allowing for “rotation only” or “hammering with rotation” based on the application at hand. The compact size and lower weight, just 4.3 lbs. with the 12V max CXT® 2.0Ah battery, minimize operator fatigue, particularly during overhead applications.

The Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) is designed with operator comfort in mind, featuring a vibration-absorbing handle that moves independently of the motor and hammer mechanism. This design significantly enhances user comfort during extended use. The variable speed trigger, built-in L.E.D. lights, and one-touch sliding chuck for easy bit changes further contribute to the tool’s convenience and versatility.

For extended run time, the 12V max CXT® cordless tools are compatible with the 12V max CXT® Lithium-Ion 4.0Ah battery (BL1041B, sold separately). The 12V max CXT® Lithium-Ion batteries are engineered with a Battery Protection Circuit, providing protection against overloading, over-discharging, and over-heating. This rotary hammer is part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.

With a Makita-built variable speed motor, compact and ergonomic design at only 9-11/16”, and a weight of just 4.3 lbs. with the battery, the Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) ensures reduced operator fatigue and increased maneuverability. The vibration-absorbing handle, along with the 2-mode operation, variable speed trigger, and built-in L.E.D. light, enhance user comfort and efficiency on the job.

Please note that the Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah) is not compatible with 12V max pod-style tools, batteries, and chargers. The tool is backed by a 3-year limited warranty on the tool, battery, and charger. To ensure optimal performance and reliability, it is recommended to use genuine Makita batteries and chargers.

Experience the power, versatility, and convenience of the Makita RH02R1 12V max CXT Lithium-Ion Cordless 9/16” Rotary Hammer Kit, accepts SDS-PLUS bits (2.0Ah), and elevate your drilling capabilities to new heights in tight spaces and overhead applications.
