Technical Specifications

• Max. Capacity (concrete drilling): 5/8”
• Optimum Range (concrete drilling): 5/32” – 3/8”
• Impact Energy (Joules): 1.1 J
• Impact Energy (ft.lbs.): .81
• Vibration (m/s²): 7.5
• No Load Speed (variable speed): 0 – 680 RPM
• Blows Per Minute (variable speed): 0 – 4,800 BPM
• Battery: 12V max CXT® Lithium-Ion
• Overall Length: 9-7/8”
• Net Weight (with battery): 4 lbs
• Bit Type: Accepts SDS-PLUS
• Power Type: Cordless
• Motor Type: Brushless
• Shipping Weight: 4.25 lbs
• UPC Code: 088381-838498

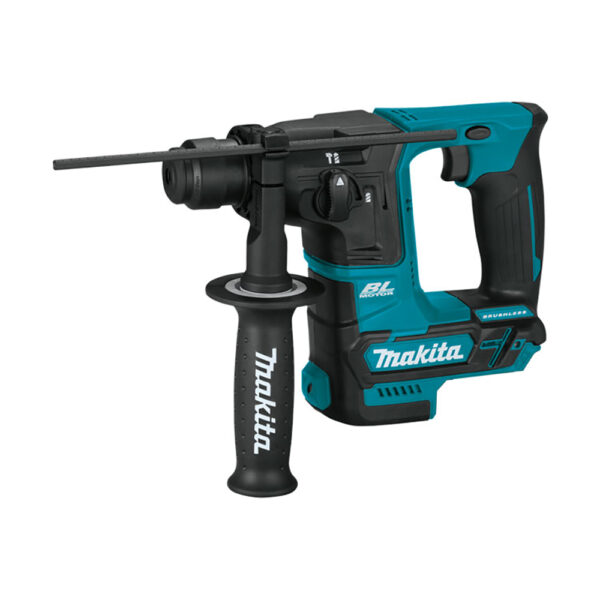

Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only Description

The Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only is a versatile and efficient concrete drilling solution designed for professionals. This tool-only version allows you to utilize your existing Makita 12V max CXT batteries and chargers (sold separately) for maximum convenience.

Powered by an efficient Makita BL™ Brushless Motor, this rotary hammer delivers up to 50% longer run time, increased power, speed, and extended tool life. With a brushless motor, it operates at 0-680 RPM, 4,800 BPM, and generates 1.1 Joules of impact energy, ensuring efficient and precise drilling.

The Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only features various ease-of-use and efficiency features. It offers 2-mode operation, allowing for both ”rotation only” and ”hammering with rotation” modes to suit different applications. The variable speed trigger enables users to match the speed to the specific drilling task, providing greater versatility.

Designed with operator comfort in mind, the rotary hammer features a vibration-absorbing handle that moves independently of the motor and hammer mechanism. This feature enhances operator comfort during prolonged use. The compact and ergonomic design, measuring only 9-7/8”, and weighing just 4.0 lbs. with the battery (battery not included), reduces operator fatigue and allows for precise control in tight spaces.

For extended run time, the 12V max CXT® cordless tools are compatible with 12V max CXT® Lithium-Ion 2.0Ah and 4.0Ah batteries (BL1021B and BL1041B, sold separately). The 12V max CXT® Lithium-Ion batteries are engineered with a Battery Protection Circuit, providing protection against overloading, over-discharging, and over-heating. This tool is part of the expanding 12V max CXT® series, renowned for its performance and superior ergonomics in a compact size.

The electronically-controlled BL™ Brushless Motor optimizes battery energy use, ensuring up to 50% longer run time per charge. The brushless motor design eliminates carbon brushes, resulting in cooler and more efficient operation for extended motor life.

The Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only offers additional features for enhanced usability. The built-in L.E.D. light illuminates the work area, enabling precise drilling even in dimly lit spaces. The one-touch sliding chuck allows for quick and easy bit changes, streamlining workflow.

For optimal dust management, the tool is compatible with the Dust Extraction Cup Set (199245-6), which includes a side handle, spacer, side handle base, and bolt.

The Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only is backed by a 3-year limited warranty, ensuring reliable performance and durability. It is crucial to use genuine Makita batteries and chargers for optimal compatibility and safety.

Unlock the full potential of your Makita 12V max CXT system with the Makita RH01Z 12V max CXT Lithium-Ion Brushless Cordless 5/8” Rotary Hammer, accepts SDS-PLUS bits, Tool Only. Experience superior performance, efficiency, and ergonomic design in a compact package, empowering you to tackle concrete drilling tasks with ease.
