Technical Specifications

• Maximum Horsepower: 3 HP
• Running Horsepower: 2.1 HP
• Tank: 5.2 gal
• Performance (40 PSI): 6.9 CFM
• Performance (90 PSI): 6.5 CFM
• Maximum Pressure: 140 PSI
• Net Weight: 88 lbs
• Pump Type: Oil-Lubricated
• Gas or electric: Electric
• Shipping Weight: 107 lbs
• UPC Code: 088381-053549

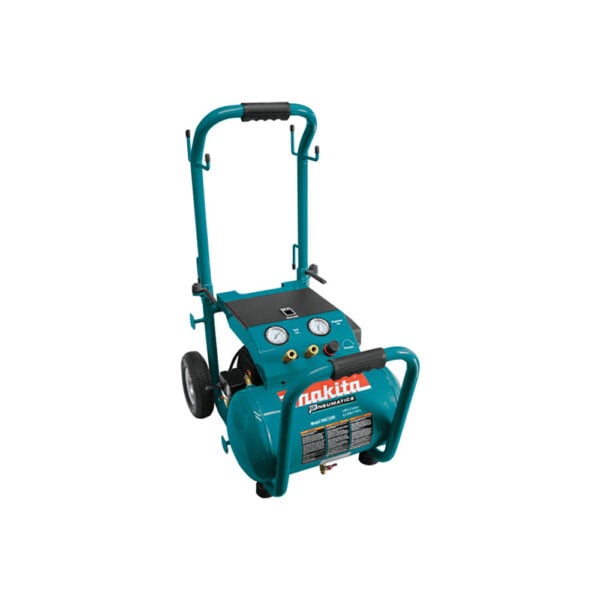

Makita MAC5200 3.0 HP* Big Bore Air Compressor Description

The Makita MAC5200 3.0 HP* Big Bore Air Compressor is a powerful and durable solution designed to deliver exceptional performance on any job site. Equipped with Makita’s Big Bore™ engineered pump cylinder and piston, this compressor provides higher output for two nailers while reducing noise for improved job site efficiency.

The Makita MAC5200 3.0 HP* Big Bore Air Compressor features a rugged design with built-in wheels and a folding handle, ensuring easy transport and maneuverability. With its industrial power and improved durability, this compressor is built to withstand tough job site conditions.

Powered by a 3.0 HP motor with a built-in thermal overload for additional protection, the Makita MAC5200 3.0 HP* Big Bore Air Compressor delivers reliable performance. The Makita Big Bore™ engineered pump with a cast iron cylinder offers a greater bore and stroke, resulting in increased compression, faster recovery, and reduced noise levels. The cast iron construction ensures exceptional durability, making it suitable for demanding job site environments.

Featuring an oil-lubricated pump and a large automotive-style filter, the Makita MAC5200 3.0 HP* Big Bore Air Compressor provides increased air intake and greater efficiency. The oil lubrication allows the pump to run at cooler temperatures, while the finned discharge tubing dissipates heat more efficiently, reducing water buildup in the tank.

Built with a roll cage construction, this compressor offers extra protection for the pump and motor assembly, ensuring its longevity in harsh job site conditions. Convenience features include tool hangers for easy storage, a built-in compartment for air fittings and accessories, and an air hose wrap that can store up to 50 ft. of 3/8” air hose with the handle folded or upright.

The Makita MAC5200 3.0 HP* Big Bore Air Compressor is engineered for low noise, high output, and minimal maintenance, delivering industrial power and reliable results. Its cast iron pump with Big Bore™ cylinder and piston ensures faster recovery time for improved performance. The powerful 3.0 HP motor produces 6.5 CFM at 90 PSI, increasing productivity while keeping noise levels to a minimum.

Designed with user convenience in mind, the Makita MAC5200 3.0 HP* Big Bore Air Compressor features a folding handle with a low-profile design for easy storage. The rugged wheels enhance portability, allowing you to transport the compressor effortlessly around the job site. The built-in storage compartment conveniently holds air fittings and accessories, keeping them organized and within reach. The air hose wrap can accommodate up to 50 ft. of 3/8” air hose with the handle folded or upright.
