Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer Technical Specifications:

• AMPS: 11
• Max. Capacity (Concrete Drilling): 1-9/16”
• Optimum Range (Concrete Drilling): 5/8” – 1-1/4”
• Max. Capacity (Concrete Drilling w/ core bit): 4-1/8”
• Impact Energy (ft.lbs.): 8.4
• Impact Energy (Joules): 11.4 J
• Blows Per Minute (variable speed): 1,450 – 2,900 BPM
• No Load Speed (variable speed): 250 – 500 RPM
• Vibration Control: Yes
• Vibration (m/s²): 5
• Overall Length: 18-11/16”
• Cord Length (ft): 15.6′
• Net Weight: 15.1 lbs.
• Bit Type: Accepts SDS-MAX
• Power Type: Corded
• Bind-Up Control: No
• Shipping Weight: 27.8 lbs.
• UPC Code: 088381-651325

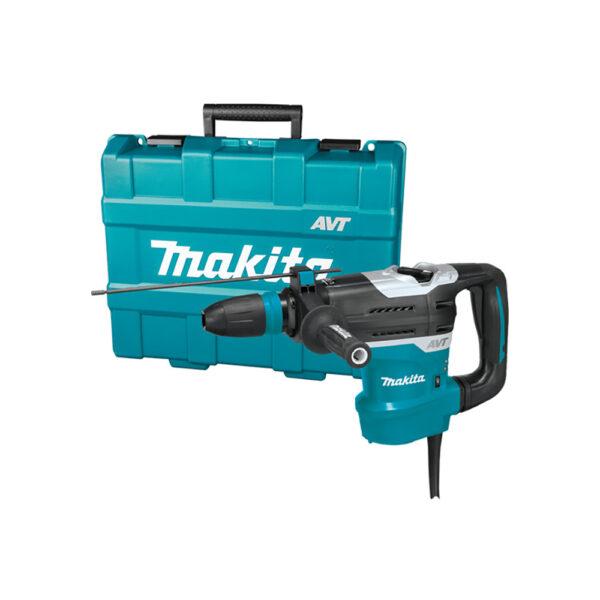

Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer Description

The Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer, a powerful and advanced tool designed to provide exceptional performance while significantly reducing vibration. With 45% less vibration and 20% more impact energy than the previous model, the Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer is engineered with enhanced Anti-Vibration Technology (AVT®), a synchronized three-component system that sets a new standard for vibration reduction, achieving a category-leading vibration rating of 5m/s². Equipped with a robust 11 AMP motor, the Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer delivers an impressive 8.4 ft. lbs. (11.4 Joules) of impact energy, providing 20% more power than its predecessor for faster drilling and increased productivity. The tool offers the flexibility of lock-on or trigger-activated operation in the ”chipping only” mode, and its push-button start/stop control ensures convenient and efficient operation.

The Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer is engineered for a wide range of concrete applications, including drilling and coring through-holes for pipes, securing larger anchors, tilt-wall supports, and small chipping tasks. It is the ideal choice for professionals in various trades, including masons, concrete contractors, demolition contractors, plumbers, electricians, sprinkler installers, and general contractors seeking a best-in-class rotary hammer that delivers outstanding performance. The Advanced Anti-Vibration Technology (AVT®) incorporated into the Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer ensures a significant reduction in vibration levels. This advanced system includes an air actuated counterbalance that effectively reduces vibration by directing air pressure to move counterweight pistons in the opposite direction of the hammer mechanism. The vibration absorbing housing with a spring-loaded back handle and independent motor and hammer mechanism further isolates vibration away from the user, enhancing user comfort and reducing fatigue. Additionally, the integrated damper spring at the base of the impact bolt absorbs impact vibrations, further contributing to the overall smooth operation of the tool.

The Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer offers several features that enhance performance, durability, and user convenience. The constant speed control automatically applies additional power to the motor to maintain a consistent speed under load, ensuring efficient completion of even the most challenging jobs. The soft start feature suppresses start-up reaction, providing better precision and accuracy. The ”soft no-load” function automatically reduces the motor speed when idling, promoting longer tool life and improved performance. The variable speed control dial enables users to match the speed to the specific application, offering greater versatility. Safety and longevity are paramount in the Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer design. The torque limiting clutch prevents gear damage by automatically disengaging gears if the bit binds, ensuring the tool’s longevity. The sequential impact timing minimizes overlapping bit impacts, resulting in up to 50% faster drilling. The LED power light alerts users to switch failure or cord damage, ensuring a safe working environment. The LED service light provides advanced notification, approximately 8 hours before the brushes need replacement, enabling timely maintenance and uninterrupted productivity. The automatic brush cut-off protects the commutator from damage, extending the tool’s overall lifespan.

The Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer offers convenient features that enhance user experience and productivity. The 2-mode operation allows for both ”Chipping Only” and ”Hammering with Rotation” modes, accommodating different job requirements. The 24 bit angle settings provide flexibility and convenience during operation. The one-touch sliding chuck enables quick and effortless bit changes, minimizing downtime and maximizing efficiency. The 16.4 ft. power cord offers extended reach and user convenience, ensuring greater flexibility on the job site. Experience the power, reduced vibration, and advanced features of the Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer. With its innovative design, exceptional performance, and user-centric features, this tool is built to tackle the toughest concrete applications with ease. Trust in Makita’s renowned quality and reliability to elevate your productivity and efficiency on the job site.

Makita HR4013C Corded 1-9/16” SDS-MAX AVT Rotary Hammer Includes:

• (1) D-Handle Assembly, HR4013C (196792-8)
• (1) Depth Gauge (331955-1)
• (1) Side Handle Assembly (123138-5)
• (1) Hammer Bit Grease (194683-7)
• (1) Tool Case (141977-1)
