Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer Technical Specifications:

• AMPS: 7
• Max. Capacity (Concrete Drilling): 1”
• Optimum Range (Concrete Drilling): 3/16” – 1/2”
• Max. Capacity (Concrete Drilling w/ core bit): 2-11/16”
• Impact Energy (ft.lbs.): 2.1
• Impact Energy (Joules): 2.9 J
• Blows Per Minute (variable speed): 0 – 4,600 BPM
• No Load Speed (variable speed): 0 – 1,200 RPM
• Vibration Control: Yes
• Vibration (m/s²): 11.5
• Overall Length: 15-1/8”
• Cord Length (ft): 13.1′
• Net Weight: 6.6 lbs.
• Bit Type: Accepts SDS-PLUS
• Power Type: Corded
• Bind-Up Control: No
• Type (Breakers & Demolition Hammers): Scraper
• Shipping Weight: 13.2 lbs.
• UPC Code: 088381-687133

Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer Description

The Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer, a powerhouse of performance and precision. Engineered with Anti-Vibration Technology (AVT®), this rotary hammer features an internal counterbalance system that significantly reduces vibration, providing a more comfortable and controlled drilling experience. With its compact size and exceptional power, the Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer is ideal for a wide range of applications, including overhead drilling tasks. The 7 AMP motor delivers an impressive 2.9 Joules (2.1 ft.lbs.) of impact energy, making it capable of handling even the most demanding applications with ease.

The 3-mode operation offers versatility, allowing you to choose between ”rotation only,” ”hammering with rotation,” or ”chipping only” modes, depending on your specific needs. Switching between modes is quick and convenient thanks to the recessed hammer-function selector located below the gear housing, ensuring enhanced durability. For added convenience and visibility, the Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer features an LED light at the base of the tool’s pistol grip, illuminating the work surface in low-light conditions. Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer is designed for a variety of applications, including drilling into concrete, wood, and metal, as well as tile removal, making it an excellent choice for professionals in various trades such as masonry, plumbing, electrical work, and general contracting. The Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer is equipped with Anti-Vibration Technology (AVT®), which effectively reduces vibration by employing a counterweight mechanism that moves in the opposite direction of the drive piston.

An integrated damper spring at the base of the impact bolt absorbs impact vibrations, further minimizing user fatigue. The torque limiting clutch is designed to protect the gears by disengaging automatically in case the bit binds, ensuring long-lasting performance. The LED light not only enhances visibility in low-light conditions but also improves productivity. The recessed hammer function selector enhances the tool’s durability and user experience. With its variable speed trigger, you can easily match the speed to the specific application, providing greater versatility and control. The 3-mode operation offers flexibility and convenience, allowing you to select the most suitable mode for each task. The Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer also features 40 bit angle settings, enabling you to adjust the bit position for improved operating convenience.

The ergonomic pistol-grip handle with a rubberized soft grip provides increased comfort during extended use. Additionally, the ”No hammering when idling” function helps prolong the tool’s life, while the option to use a dust extraction accessory (part no.195173-3) helps reduce dust exposure during drilling applications. The Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer combines power, versatility, and innovative features to deliver exceptional performance and reliability, making it the go-to choice for professionals seeking a best-in-class rotary hammer.

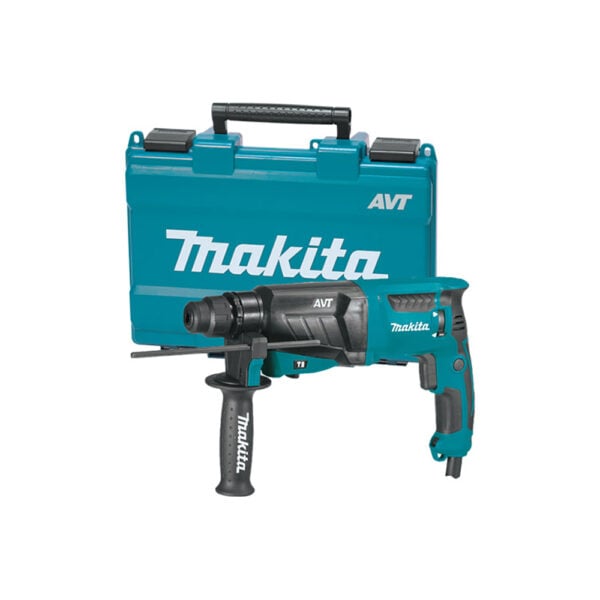

Makita HR2631F Corded 1” SDS-PLUS AVT Rotary Hammer Includes:

• (1) Side Handle (451749-9)
• (1) Depth Gauge (331886-4)
• (1) Tool Case (824695-3)
