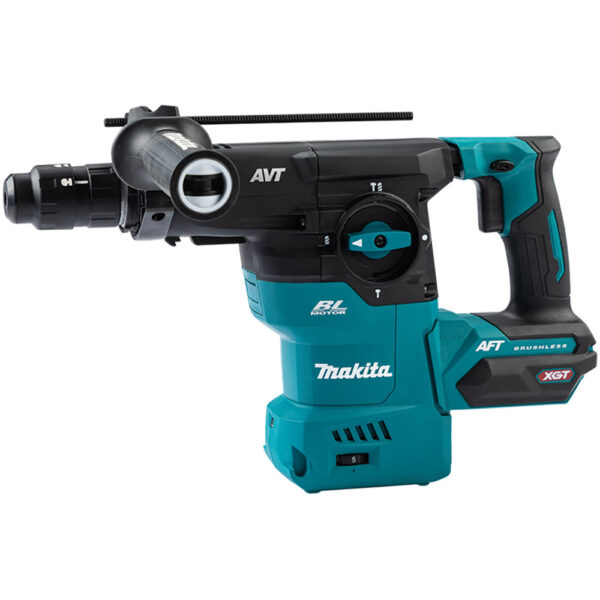

Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer, with Interchangeable Chuck, AWS Capable, Tool Only Technical Specifications:

• System: 40V max XGT®
• Battery: 40V max XGT® Lithium-Ion
• Max Cap. (Concrete Drilling): 1-3/16”
• Optimum Range (Concrete): 3/16” – 3/4”
• Max Cap. Concrete w/Core Bit: 3-1/8”
• Impact Energy (ft.lbs.): 2.9
• Impact Energy (Joules): 3.9 J
• Blows Per Min. (Vari. Speed): 0 – 4,500 BPM
• No Load Speed (variable speed): 0 – 840 RPM
• Bind-Up Control: Yes
• Vibration Control: Yes
• Vibration (m/s): 9.1
• Auto-start Wireless System: Capable (Transmitter Sold Separately)
• Bit Type: Accepts SDS-PLUS
• Overall Length: 16-1/4”
• Net Weight (with Battery): 10.1 lbs.
• Power Type: Cordless
• Shipping Weight: 13.23 lbs.
• UPC Code: 088381-764711

Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer, with Interchangeable Chuck, AWS Capable, Tool Only Description

The Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer, with Interchangeable Chuck, AWS Capable, Tool Only is designed for heavy-load applications, providing the power, speed, and run-time required without the need for a cord. The quick-change chuck allows for easy interchangeability from SDS-PLUS to a 1/2” keyless chuck, enabling the use of straight shank bits. The Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer is powered by a 40V max lithium-ion battery with a Makita-built brushless motor, delivering the power and performance needed for demanding applications. With a fully charged 40V XGT 4.0Ah battery, it can complete up to 135 holes of 3/8” size. The variable speed dial and trigger allow users to match the speed to the application, providing optimal control. Advanced comfort and convenience features include Active Feedback-Sensing Technology (AFT), which automatically turns off the motor if the bit rotation is suddenly forced to stop, ensuring safety and protecting the tool. The Anti-Vibration Technology (AVT) reduces vibration through an internal counterbalance system and vibration-absorbing handles, enhancing user comfort during operation.

Durability is a key feature with the Extreme Protection Technology (XPT), which improves dust and water resistance, making it suitable for harsh job site conditions. The Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer also offers dust extraction capability, meeting OSHA Table 1 compliance with an on-board HEPA Dust Extractor or stand-alone AWS Extractor options. The Auto-Start Wireless System (AWS) enables wireless power-on and power-off communication between the tool and dust extractor, increasing productivity and reducing noise. The Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer is packed with additional performance features, including an electric brake for faster repositioning, a built-in LED light for illuminating the work area, and an ergonomic soft-grip handle with a large 2-finger trigger for increased comfort during extended use. The retractable tool hook allows for easy storage and securing of the tool when not in use.

With three operation modes for ”Rotation Only,” ”Hammering with Rotation,” or ”Hammering Only,” the Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer offers versatility for various applications. Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer is ideal for a range of trades, including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, and maintenance operations. The XGT system is at the core of this rotary hammer, utilizing 40V max lithium-ion batteries to deliver high power for high-demand applications. Equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features, XGT outpowers, outsmarts, and outlasts the competition. The Makita-built brushless motor, combined with the 40V max XGT battery, delivers the necessary power and performance for heavy-load applications.

Constant speed control automatically provides additional power under load, while the torque limiting clutch prevents gear damage by disengaging the gears in bind-up situations. The XGT technology ensures long-lasting performance, optimizing power delivery to provide up to 2X longer sustained power under heavy-load applications. The digital communication within XGT actively monitors and protects against overload, over-discharge, and overheating, enhancing the tool’s lifespan. XGT Tools and Batteries are designed with a multi-layer contact interface, ensuring constant power delivery to tackle high-current demands. The XGT Batteries feature rigid rails with impact-resistant construction, securely attaching the battery to the tool during high-demand applications. For efficient charging, the XGT Rapid Charger features a dual-fan design that circulates air through the battery, cooling it and the circuit board for faster charging. The digital display on the charger indicates the battery charge level, and the built-in chip controls the charging process for improved efficiency. Ensure the best performance and reliability by using genuine Makita batteries and chargers. Enjoy a 3-year limited warranty on the Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer, with Interchangeable Chuck, AWS Capable, Tool Only. Tested using 5,000 PSI concrete, this rotary hammer is ready to tackle your toughest jobs.

Makita GRH09Z 40V max XGT Brushless Cordless 1-3/16” SDS-PLUS AVT Rotary Hammer, with Interchangeable Chuck, AWS Capable, Tool Only Includes:

• (1) Quick Change 1/2” Keyless Chuck (199139-5)
• (1) Side Handle Assembly (126882-3)
• (1) Grease (194683-7)
• (1) Cloth Towel (443122-7)
