Technical Specifications

• Power Type: Pneumatic
• Operating Air Pressure (PSI): 65 – 100
• Minimum Recommended Air Delivery: .8 SCFM @ 90 PSI
• Nail Size: 5/8”, 11/16”, 3/4”, 1”, 1-3/16”, 1-3/8” (23 ga.)
• Maximum Magazine Capacity: 130
• Fastening category: Pin
• Dimensions (LxWxH): 8-3/16” x 2-5/8” x 7-1/2”
• Net Weight: 2 lbs
• Industrial Style Fitting Included: 1/4” NPT x 1/4”
• Inlet Size: 1/4” NPT
• Operating Air Pressure (Bar): 4.9 – 8.3
• Air Fitting Included: Yes
• Shipping Weight: 6.38 lbs
• UPC Code: 088381-822428

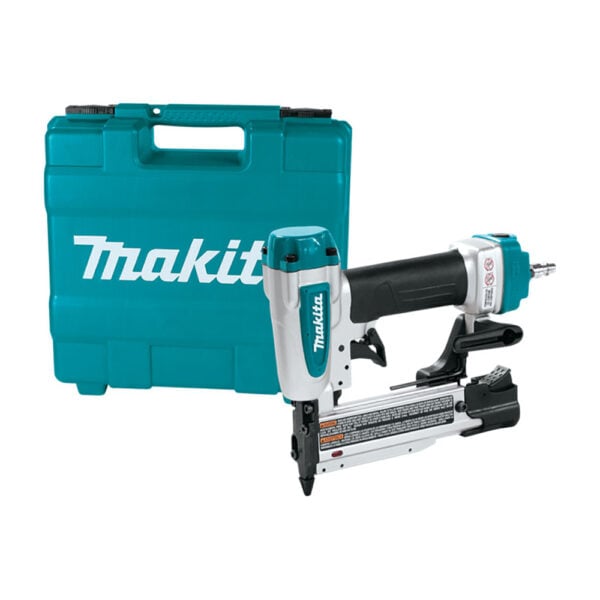

Makita AF353 23 Gauge, 1-3/8” Pin Nailer Description

The Makita AF353 23 Gauge, 1-3/8” Pin Nailer is a compact and powerful tool designed for precision pinning in a wide range of woodworking applications. Whether you’re installing moulding, tacking trim, or assembling picture frames, this pin nailer offers exceptional performance and convenience.

The Makita AF353 23 Gauge, 1-3/8” Pin Nailer features a side, drop-in loading magazine that accepts standard 23 gauge headless pins in various sizes, including 5/8”, 11/16”, 3/4”, 1”, 1-3/16”, and 1-3/8”. With a nail lock-out mechanism and red window, you’ll be alerted when it’s time to reload pins, ensuring smooth and uninterrupted operation. The two-finger trigger provides controlled firing, enhancing accuracy and precision.

Weighing only 2 lbs. and boasting a compact size, the Makita AF353 23 Gauge, 1-3/8” Pin Nailer is engineered for all-day professional use. Its lightweight aluminum body, magazine, and cylinder offer strength and durability without adding unnecessary weight, reducing user fatigue during extended projects.

Convenience features abound in this pin nailer. The reversible belt hook allows for easy storage and keeps the tool within reach, while the rear exhaust port directs exhaust air away from the user and work surface, ensuring a clean and comfortable workspace. The built-in air duster provides convenient airflow to clear debris and maintain optimal performance.

The Makita AF353 23 Gauge, 1-3/8” Pin Nailer comes with two removable no-mar tips, featuring sightlines for increased pinning accuracy. The easy-to-clear nose allows for quick nail extraction in case of a jam, ensuring minimal downtime. The narrow nose design enables easy access to tight areas and angles, making it versatile for various woodworking tasks.

With a powerful motor, the Makita AF353 23 Gauge, 1-3/8” Pin Nailer effortlessly drives standard headless pins ranging from 5/8” to 1-3/8” in length. Its magazine self-adjusts to accommodate the proper fastener length, eliminating guesswork and optimizing efficiency.

Experience the reliability and precision of the Makita AF353 23 Gauge, 1-3/8” Pin Nailer. With a minimum recommended air delivery of .8 SCFM @ 90PSI, this nailer ensures consistent performance. Backed by a 3-year limited warranty, it offers peace of mind and is built to withstand the demands of professional use.
