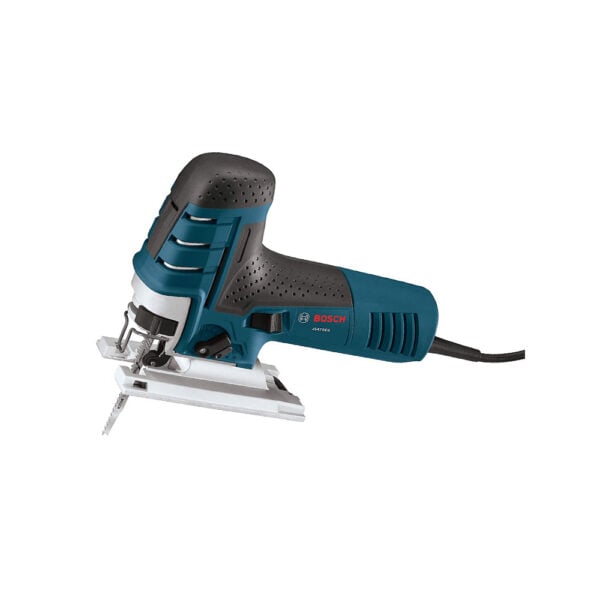

BOSCH JS470EB 7.0 Amp Barrel-Grip Jig Saw. Amperage: 7.0 Bevel Angle Range: 45° Category: Jig Saws Cutting Capacity- Soft Wood: 5-7/8” Cutting Capacity-Aluminum: 0.875 Cutting Capacity-Mild Steel: 0.375 Dust Blower: Yes
The BOSCH JS470EB 7.0 Amp Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox.
This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB’s multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
| Amperage | 7 |
|---|---|
| Product Category | Jigsaws |
| Cut Capacity Soft Wood | 5-7/8'' |
| Cut Capacity Aluminum | 0.875 |
| Cut Capacity Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height | 7.0'' |
| Hertz | 60 |
| Jigsaw Blade Type | Jigsaw T-Shank |
| Length | 7.0'' |
| Max. Bevel Capacity | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 100, 500-3 |
| Rating | 120V |
| Stoke Length | 1 |
| Weight | 5.9lbs |
| Width | 2.5'' |
| Works With | Jigsaw Guide JA1010 Dust Collection Attachment JA1007 Anti-Splinter Insert JA1013 |
| Includes | (1) Anti-Splinter Insert (JA1013), (1) Bevel Wrench, (1) Carrying Case, (1) Jigsaw Blade, (1) Plastic Overshoe (2601099183) |
This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB’s multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
| Amperage | 7 |
|---|---|
| Product Category | Jigsaws |
| Cut Capacity Soft Wood | 5-7/8'' |
| Cut Capacity Aluminum | 0.875 |
| Cut Capacity Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height | 7.0'' |
| Hertz | 60 |
| Jigsaw Blade Type | Jigsaw T-Shank |
| Length | 7.0'' |
| Max. Bevel Capacity | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 100, 500-3 |
| Rating | 120V |
| Stoke Length | 1 |
| Weight | 5.9lbs |
| Width | 2.5'' |
| Works With | Jigsaw Guide JA1010 Dust Collection Attachment JA1007 Anti-Splinter Insert JA1013 |
| Includes | (1) Anti-Splinter Insert (JA1013), (1) Bevel Wrench, (1) Carrying Case, (1) Jigsaw Blade, (1) Plastic Overshoe (2601099183) |
