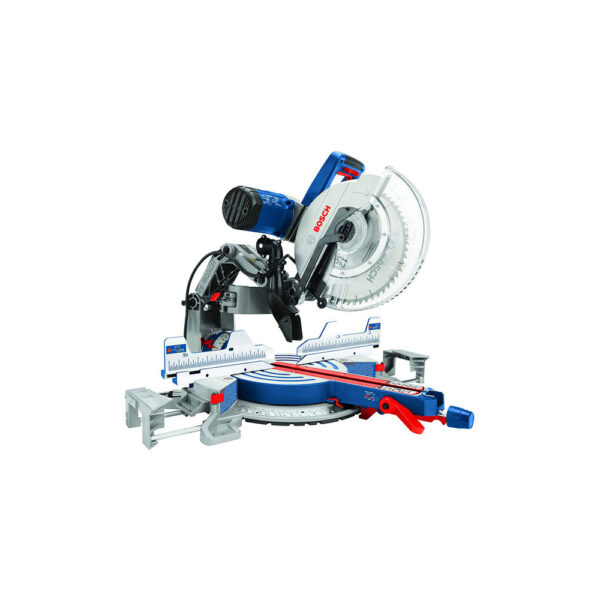

BOSCH GCM12SD 12” Dual Bevel Glide Miter Saw. Amperage: 15.0 Bevel Angle Range: 47° left and 47° right Bevel Stops: 0°, 33.9°, 45° and 47° (L/R) Blade Diameter: 12.0 Blade Size: 12” Dust Collection: Yes Electric Motor Brake: Yes
BOSCH GCM12SD 12” Dual Bevel Glide Miter Saw offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The BOSCH GCM12SD 12” Dual Bevel Glide Miter Saw’s 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the BOSCH GCM12SD 12” Dual Bevel Glide Miter Saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. BOSCH GCM12SD 12” Dual Bevel Glide Miter Saw provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw’s all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
| Amperage | 15 |
|---|---|
| Bevel Angle Range | L: 47° and R: 47° |
| Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
| Blade Diameter | 12 |
| Blade Size | 12.00'' |
| Product Category | Compound Miter Saws |
| Dust Collection | Yes |
| Electric Motor Brake | Yes |
| Height | 27.00'' |
| Table Height Base-Surface | 3.75in |
| Length | 32.375'' |
| Base Mold Against Fence | 3-7/8in |
| Mold (38° Spring) Fence | 5-1/4'' |
| Mold (45° Spring) Fence | 6.00'' |
| Cut Cap. 0° Miter Bevel | 3-1/2'' x 13-1/2'' |
| Cut Cap. 45° Bevel | 1-1/2'' x 13-/12'' |
| Cut Cap. 45° Miter | 3-1/2'' x 9-1/2'' |
| Cut Cap. 45° Miter Bevel | 1-1/2'' x 9-1/2'' |
| Miter Angle Range | L: 52° and R: 60° |
| Miter Detents | (Left/Right) 60°, (Right) Miter Positive Stops: 0°, ° 31.6°, 0°, 15°, 22.5, 22.5°, 31.6°, 45°, 45° (Left/Right), 60° (Right) |
| On/Off Speed Control | Blank |
| Voltage | 120V |
| Weight | 65.0lbs |
| Width | 26.5'' |
| Works With | 1B, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses VAC024. (The VAC002 adapter is not compatible with the GCM12SD.), and most other 22 mm and 35 mm anti-static hoses, and most other 22 mm and 35 mm hoses, Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), GTA3800 Miter Saw Stands, MS1233 Crown Molding Stops (Pair), MS1234 Length Stop, Other Vacuum Hoses VH1022, T4B, VAC005 and VAC006 hoses, VAC008, VH1035 and VH1635 (by means of VX120 adapter included with those hoses) |
| Includes | (1) Dust Bag/Assembly, (1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw, (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade, (1) Toolless Vertical Work Clamp, (1) Vacuum Adapter Elbow, (1) Wrench |
