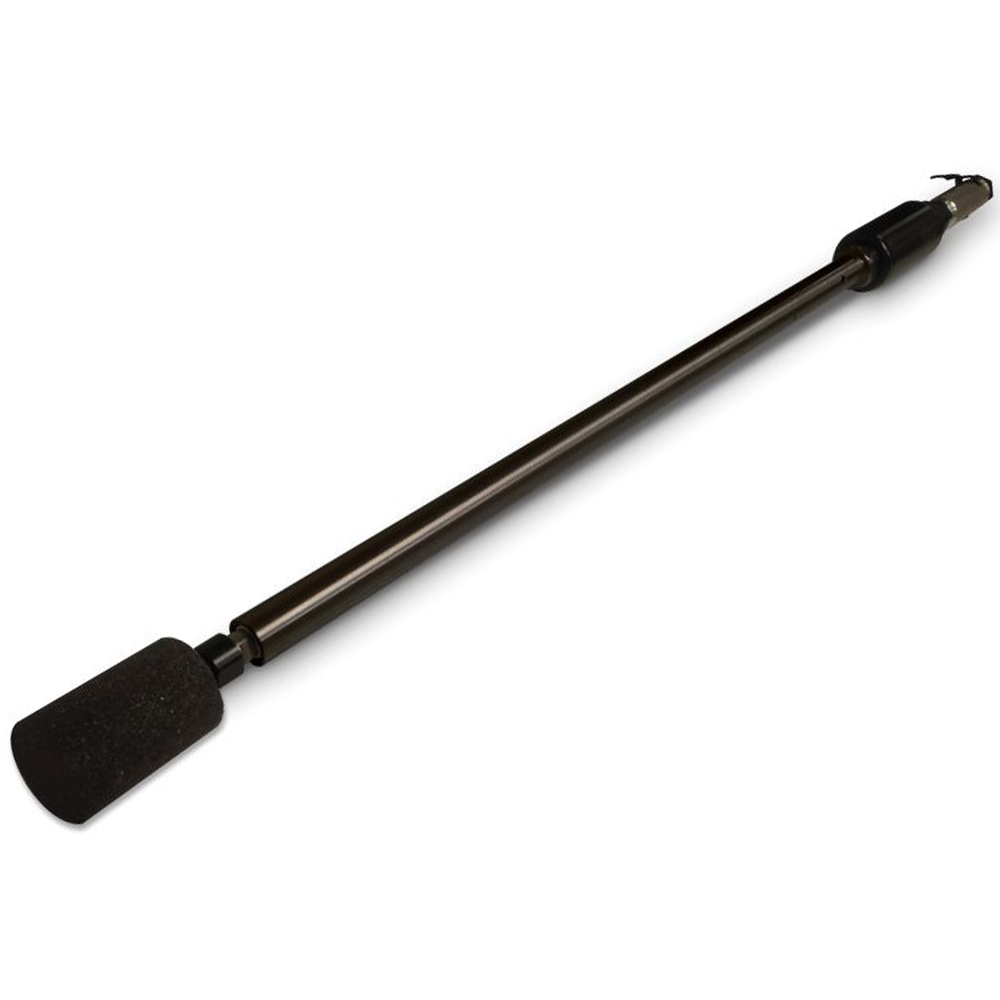

ATP E1212S-36HD-C Cyclone Cone Wheel Heavy Duty 36” Extended Horizontal Grinder, 3/8”-24. Rated: 1.2hp / 0.9kW Free Speed: 12,000RPM Throttle Type: Lever Spindle Output: Cone Wheel Type & Thickness: Cone Wheels Overall Length: 48-1/2” / 1232mm
The ATP E1212S-36HD-C Cyclone Cone Wheel Heavy Duty 36” Extended Horizontal Grinder, 3/8”-24 is engineered for both durability and high performance, making it a reliable tool for professionals tackling tough jobs. Constructed with a robust steel body, this grinder is built to withstand demanding environments. The governed motor provides maximum power under load, ensuring consistent performance.
Additionally, the sealed double row bearing spindle output enhances durability, while the side air exhaust maintains a clean workspace. The standard lever throttle offers precise control, making the ATP E1212S-36HD-C Cyclone Cone Wheel Heavy Duty 36” Extended Horizontal Grinder, 3/8”-24 ideal for extended reach and heavy-duty applications.
| Rated | 1.2hp / 0.9kW |
|---|---|
| Free Speed | 000rpm, 12 |
| Throttle Type | Lever |
| Spindle Output | Cone |
| Wheel Type & Thickness | Cone Wheels |
| Overall Length | 48-1/2'' / 1232mm |
| Extension Length | 36'' / 914mm |
| Extension Diameter | 1-3/8'' / 34.9mm |
| Air Inlet NPT | 3/8'' |
| Weight | 11.1lbs / 5.00kg |
| Hose ID | 3/8'' / 10mm |
| Exhaust Direction | Side |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 35 cfm / 991 l/min |
