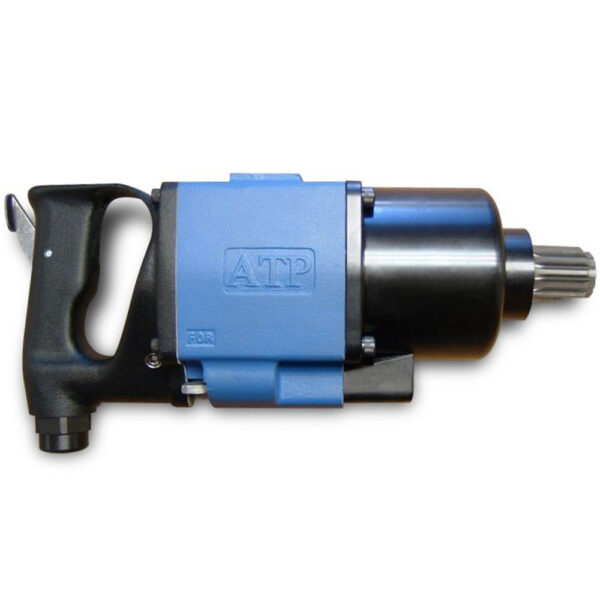

ATP ATP1550EO-5S 1550 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 2500 ft-lbs / 3400 Nm Max Torque: 3000 ft-lbs / 4067 Nm Tool Duty Rating: Super Duty Handle Type: Grip Throttle Type: Outside Trigger
The ATP ATP1550EO-5S 1550 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is engineered for high performance and durability. Featuring a high output twin hammer mechanism and bronze end plates, it ensures increased motor longevity. The steel hammer case and operator assist handle provide additional strength and ease of use. An integral muffler reduces noise, making it suitable for various applications.
The three-piece housing design allows for easy repairs. The ATP ATP1550EO-5S 1550 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive, is a reliable and efficient tool for demanding tasks.
| Working Torque | 2500 ft-lbs / 3400 Nm |
|---|---|
| Max Torque | 3000 ft-lbs / 4067 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Grip |
| Throttle Type | Outside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch Type | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 14.50'' / 368mm |
| Weight | 33lbs / 14.90kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 70 cfm / 1, 982 l/min |
| OEM | Ingersoll Rand |
| Comparable OEM Model | IR2950A1 |
