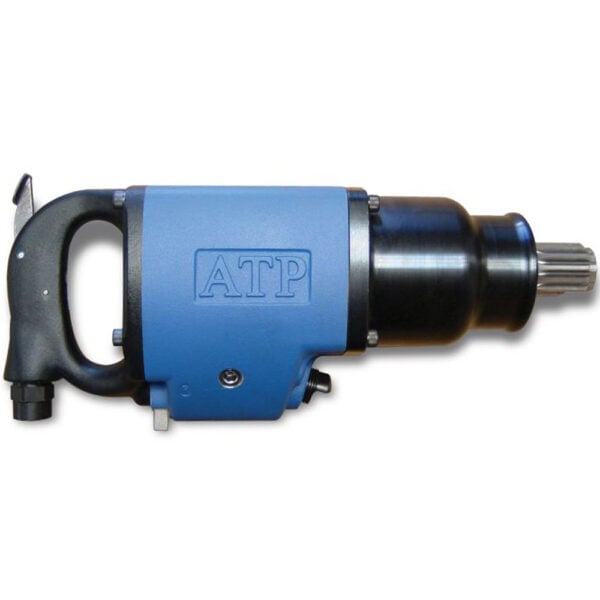

ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive

Price: $5,804.00

Part Number: ATP1520EO-5S

ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 2500 ft-lbs / 3400 Nm Max Torque: 3000 ft-lbs / 4067 Nm Tool Duty Rating: Super Duty Handle Type: End Grip O-T Throttle Type: Outside Trigger

ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive Description

The ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is engineered for exceptional power and durability. Featuring a two jaw clutch that transfers high power efficiently, this wrench excels in both hard and soft draw applications. Its steel clutch housing and three-piece design ensure long-lasting performance and ease of repair.

The integral muffler reduces noise, making it suitable for various environments. The ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive, is a reliable choice for professionals needing robust and efficient tools.

Technical Specifications

Additional information

Working Torque

2500 ft-lbs / 3400 Nm

Max Torque

3000 ft-lbs / 4067 Nm

Tool Duty Rating

Super Duty

Handle Type

End Grip O-T

Throttle Type

Outside Trigger

Drive Size

#5 Spline

Impact Mechanism / Clutch Type

Two Jaw

Socket Retainer

Button

Housing Construction

3 Piece

Length

14.70'' / 373mm

Weight

33lbs / 14.90kg

Air Inlet NPT

1/2''

Min Hose ID

3/4'' / 19mm

Performance Pressure

90 PSIG / 6.2 Bar

Air Consumption

70 cfm / 1, 982 l/min

OEM

Chicago Pneumatic

Comparable OEM Model

CP6120-PASEL

ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive Description

The ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is engineered for exceptional power and durability. Featuring a two jaw clutch that transfers high power efficiently, this wrench excels in both hard and soft draw applications. Its steel clutch housing and three-piece design ensure long-lasting performance and ease of repair.

The integral muffler reduces noise, making it suitable for various environments. The ATP ATP1520EO-5S 1520 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive, is a reliable choice for professionals needing robust and efficient tools.

Additional information

Working Torque

2500 ft-lbs / 3400 Nm

Max Torque

3000 ft-lbs / 4067 Nm

Tool Duty Rating

Super Duty

Handle Type

End Grip O-T

Throttle Type

Outside Trigger

Drive Size

#5 Spline

Impact Mechanism / Clutch Type

Two Jaw

Socket Retainer

Button

Housing Construction

3 Piece

Length

14.70'' / 373mm

Weight

33lbs / 14.90kg

Air Inlet NPT

1/2''

Min Hose ID

3/4'' / 19mm

Performance Pressure

90 PSIG / 6.2 Bar

Air Consumption

70 cfm / 1, 982 l/min

OEM

Chicago Pneumatic

Comparable OEM Model

CP6120-PASEL
