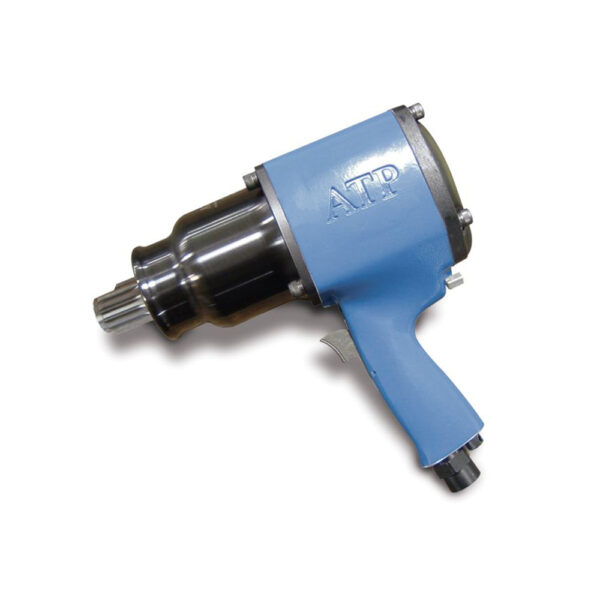

ATP ATP1011PT-5S 1011 Series Pistol Grip Impact Wrench, #5 Spline Drive. Working Torque: 1800 ft-lbs / 2440 Nm Max Torque: 2800 ft-lbs / 3796 Nm Tool Duty Rating: Super Duty Handle Type: Pistol Throttle Type: Trigger Drive Size: #5 Spline
The ATP ATP1011PT-5S 1011 Series Pistol Grip Impact Wrench, #5 Spline Drive is engineered for optimal power transfer and durability. Featuring a two jaw clutch that delivers high power, this wrench excels in both hard and soft draw applications. Its steel clutch housing and three-piece design ensure ease of repair and longevity.
Additionally, the integral muffler significantly reduces noise, making it suitable for demanding environments. The ATP ATP1011PT-5S 1011 Series Pistol Grip Impact Wrench, #5 Spline Drive, is a robust and reliable tool for professional use.
| Working Torque | 1800 ft-lbs / 2440 Nm |
|---|---|
| Max Torque | 2800 ft-lbs / 3796 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Pistol |
| Throttle Type | Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch Type | Two Jaw |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 10.70'' / 271mm |
| Weight | 23.1lbs / 10.40kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 331 l/min, 47 cfm / 1 |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP0611-5 Spline |
The ATP ATP1011PT-5S 1011 Series Pistol Grip Impact Wrench, #5 Spline Drive is engineered for optimal power transfer and durability. Featuring a two jaw clutch that delivers high power, this wrench excels in both hard and soft draw applications. Its steel clutch housing and three-piece design ensure ease of repair and longevity.
Additionally, the integral muffler significantly reduces noise, making it suitable for demanding environments. The ATP ATP1011PT-5S 1011 Series Pistol Grip Impact Wrench, #5 Spline Drive, is a robust and reliable tool for professional use.
| Working Torque | 1800 ft-lbs / 2440 Nm |
|---|---|
| Max Torque | 2800 ft-lbs / 3796 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Pistol |
| Throttle Type | Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch Type | Two Jaw |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 10.70'' / 271mm |
| Weight | 23.1lbs / 10.40kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 331 l/min, 47 cfm / 1 |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP0611-5 Spline |
