Bronze bushing shaft support, ball thrust bearing, fail-safe. Depth Adjustment: .0005”, Cutter Capacity: 3/4”, Shaft Travel: 5/16”, Spindle Thread: 1/4-28 Female, Max RPM: 3,000, Skirt Type: Straight Cutaway, Shank: Quick Change

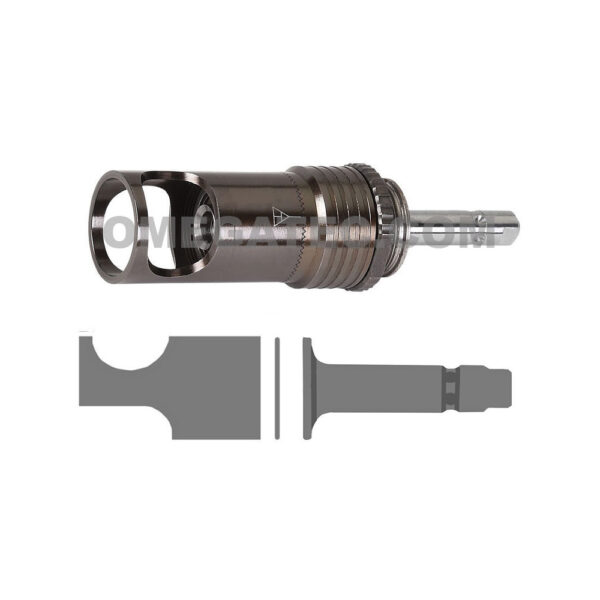

ATI443E3 ATI Microstop Cage Description.
| Depth Adjustment | .0005'' |
|---|---|
| Cutter Capacity | 3/4'' |
| Shaft Travel | 5/16'' |
| Spindle Thread | 1/4-28 Female |
| Max RPM | 3000 |
| Skirt Type | Straight Cutaway |
| Shaft Shank | Quick Change |
| Depth Adjustment | .0005'' |
|---|---|
| Cutter Capacity | 3/4'' |
| Shaft Travel | 5/16'' |
| Spindle Thread | 1/4-28 Female |
| Max RPM | 3000 |
| Skirt Type | Straight Cutaway |
| Shaft Shank | Quick Change |
