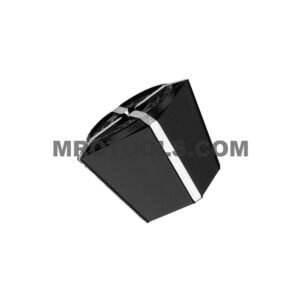

9750D Jacobs Tap Chuck Collet

9750D Jacobs Tap Chuck Collet

$69.22

Jacobs J441 Rubber-Flex tap collet. Cone Angle: 45° Contact Length: 0.630” Minimum Capacity: 0.176” Number of Inserts: 6 Outside Diameter: 1.296”

Part Number: 9750D Brand:
  • Product Description
  • Technical Specifications

9750D Jacobs Tap Chuck Collet

9750D Jacobs J441 Rubber Flex Tap Collet Description: The Jacobs Rubber Flex Tap Collet features parallel jaw insert surfaces that exert uniform, accurate gripping force up to three times greater than can be achieved with split-steel collets. Each Jacobs collet accepts and precisely centers a wide range of both decimal or metric diameters (within the collet capacity range) to speed setups and increase machining productivity. Jacobs collets are made of a durable one-piece construction, synthetic rubber that retains flexibility and resists deterioration from heat, coolants and cutting compounds, and steel jaw inserts precision ground after molding process to ensure maximum gripping accuracy. Jacobs collets are hardened for greater wear resistance than split steel collets, and each collet bore is held concentric to the o.d. tapers, front and back, to minimize T.I.R. These Jacobs Collets also automatically seal tool O.D. to prevent coolant flow through thus increasing tool wear, and it seals collets and machine spindles to protect from abrasive particles and swarf.

Technical Specifications: Chuck Series No.: Cone Angle: 45° Contact Length: 0.630” Minimum Capacity: 0.176” Number of Inserts: 6 Outside Diameter: 1.296” UPC: 095456097506

Cone Angle

45°

Contact Length

0.630''

Minimum Capacity

0.176''

Number of Inserts

6

Outside Diameter

1.296''

UPC

95456097506
