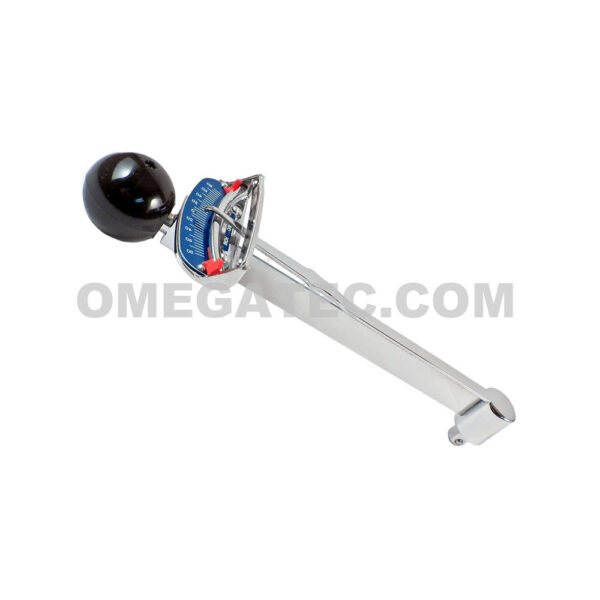

Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE Description:

• Incredibly durable design – actual service life frequently measured in decades!
• Very low cost of ownership – exceptional accuracy retention permits extended calibration intervals, and they are virtually maintenance and repair free!
• Ideal for prevailing-torque and destructive testing applications.
• Low mass/low inertia design of pointers helps eliminate reading distortion.
• Memory feature consists of fingers which follow a track in the scale and remain in place to indicate maximum torque achieved.
• Peak torque indicated on scale is accurate, even on destructive testing applications.
• Pivoted handle concentrates load at precise point on lever to assure torque accuracy.
• Meets or exceeds ASME B107.300 and ISO 6789.
• Accuracy of all flat beams is +/- 2&#37 of indicated value from 20&#37 to 100&#37 of accuracy, in both directions.
• Includes free ISO/IEC 17025 tabulated certification!

Technical Specifications: Model: M 80 IO Torque Capacity: 0-80 in. oz. Steps Of Graduations: 5 in. ozs. Square Drive: 1/4” Lever Arm Distance: 6.2” Overall Weight (lbs.): 0.25 lbs.
