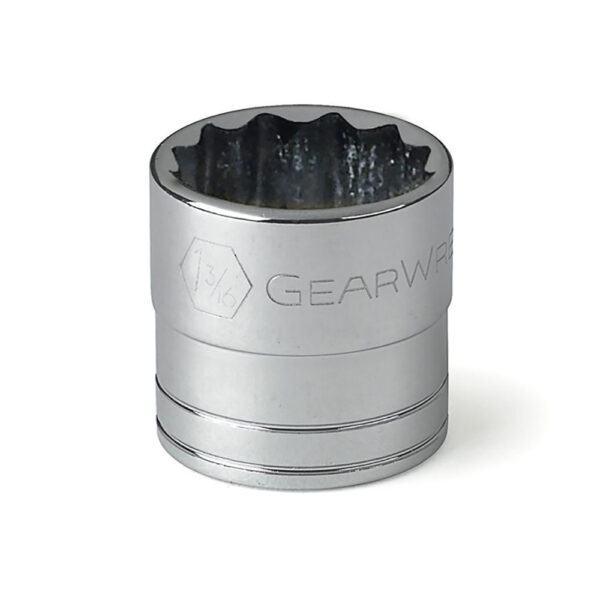

80793 GearWrench 1/2” Drive 12 Point Standard SAE Socket 1-3/16”. SAE/Metric: SAE Fastener Size: 1-3/16” Dim. A: Drive End: 1.524” Dim. B: Wrench End: 1.571” Dim. C: Overall Length: 1.654” Dim. D: Bolt Clearance: 0.472”
The 80793 GearWrench 1/2” Drive 12 Point Standard SAE Socket 1-3/16” is a robust tool designed for durability and strength, thanks to its alloy steel construction. It features an off-corner loading design that effectively minimizes fastener rounding, and a chamfered opening to ensure easy alignment with fasteners. This socket is finished with a bright, full polish chrome that not only resists corrosion but also facilitates easy cleaning.
The 80793 GearWrench 1/2” Drive 12 Point Standard SAE Socket 1-3/16” adheres to ASME specifications for quality assurance. The socket’s distinct double line ring markings make it straightforward to identify as a standard SAE socket.
| Part Number | 80793 |
|---|---|
| SAE/Metric | SAE |
| Fastener Size | 1-3/16'' |
| Dim. A Drive End | 1.524'' |
| Dim. B Wrench End | 1.571'' |
| Dim. C Overall Length | 1.654'' |
| Dim. D Bolt Clearance | 0.472'' |
| Dim. E Wrench Depth | 0.965'' |
| Dim. F Length to Shoulder | 1.496'' |
| Product Weight | 0.45lbs |
The 80793 GearWrench 1/2” Drive 12 Point Standard SAE Socket 1-3/16” adheres to ASME specifications for quality assurance. The socket’s distinct double line ring markings make it straightforward to identify as a standard SAE socket.
| Part Number | 80793 |
|---|---|
| SAE/Metric | SAE |
| Fastener Size | 1-3/16'' |
| Dim. A Drive End | 1.524'' |
| Dim. B Wrench End | 1.571'' |
| Dim. C Overall Length | 1.654'' |
| Dim. D Bolt Clearance | 0.472'' |
| Dim. E Wrench Depth | 0.965'' |
| Dim. F Length to Shoulder | 1.496'' |
| Product Weight | 0.45lbs |
