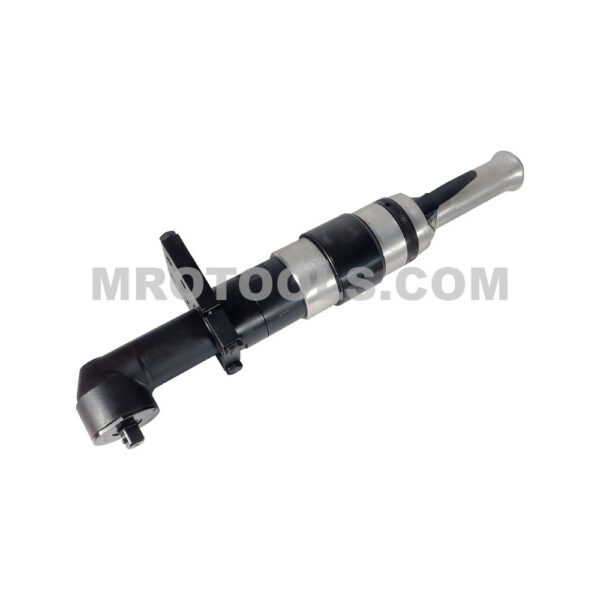

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible

Price: $6,109.00

Part Number: 75RNL-2X-6

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible. Square Drive: 3/4” Max Torque: 325ft-lbs. / 440Nm Free Speed (rpm): 90 Overall Length: 20.1” / 511mm Weight: 13.1lbs / 6.0kg Head Height: 2.8” / 70mm Side to Center: 1.4” / 37mm

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible Description

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible. Cleco 75 Series Stall Reversible Angle Nutrunners feature a lever start and twist ring reverse. Cleco 75 Series Stall Reversible Angle Nutrunners have a heavy duty Cleco motor which is the industry standard for reliability. Cleco 75 Series Stall Reversible Angle Nutrunners are engineered for performance, durability, mounting versatility, and serviceability. Cleco 75 Series Stall Reversible Angle Nutrunners feature planetary gears designed for tool speed changes with minimal parts service and replacement. Cleco 75 Series Stall Reversible Angle Nutrunners also feature heavy duty spindle bearings and splined retractable spindles that reduce friction, improves torque repeatability, and prolongs life. Cleco nutrunners are available with stall-type torque control, giving operators more control over power output and speed. In this configuration, the nutrunner runs until resistance in the fastener causes it to stall. Then, the operator can release the throttle and remove the tool. This can be especially useful for applications with varying torque rates. Square Drive: 3/4” Max Torque: 325ft-lbs. / 440Nm Free Speed (rpm): 90 Overall Length: 20.1” / 511mm Weight: 13.1lbs / 6.0kg Head Height: 2.8” / 70mm Side to Center: 1.4” / 37mm Air Inlet NPT: 1/2” Min. Hose I.D: 1/2” SCFM: 75

Technical Specifications

Additional information

Square Drive

3/4''

Max Torque

325ft-lbs./440Nm

Free Speed (rpm)

90

Overall Length

20.1''/511mm

Weight

13.1lbs/6.0kg

Head Height

2.8''/70mm

Side To Center

1.4''/37mm

Air Inlet NPT

1/2''

Min. Hose I.D

1/2''

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible Description

75RNL-2X-6 CLECO 75 Series Angle Nutrunner, Stall, Reversible. Cleco 75 Series Stall Reversible Angle Nutrunners feature a lever start and twist ring reverse. Cleco 75 Series Stall Reversible Angle Nutrunners have a heavy duty Cleco motor which is the industry standard for reliability. Cleco 75 Series Stall Reversible Angle Nutrunners are engineered for performance, durability, mounting versatility, and serviceability. Cleco 75 Series Stall Reversible Angle Nutrunners feature planetary gears designed for tool speed changes with minimal parts service and replacement. Cleco 75 Series Stall Reversible Angle Nutrunners also feature heavy duty spindle bearings and splined retractable spindles that reduce friction, improves torque repeatability, and prolongs life. Cleco nutrunners are available with stall-type torque control, giving operators more control over power output and speed. In this configuration, the nutrunner runs until resistance in the fastener causes it to stall. Then, the operator can release the throttle and remove the tool. This can be especially useful for applications with varying torque rates. Square Drive: 3/4” Max Torque: 325ft-lbs. / 440Nm Free Speed (rpm): 90 Overall Length: 20.1” / 511mm Weight: 13.1lbs / 6.0kg Head Height: 2.8” / 70mm Side to Center: 1.4” / 37mm Air Inlet NPT: 1/2” Min. Hose I.D: 1/2” SCFM: 75

Additional information

Square Drive

3/4''

Max Torque

325ft-lbs./440Nm

Free Speed (rpm)

90

Overall Length

20.1''/511mm

Weight

13.1lbs/6.0kg

Head Height

2.8''/70mm

Side To Center

1.4''/37mm

Air Inlet NPT

1/2''

Min. Hose I.D

1/2''
