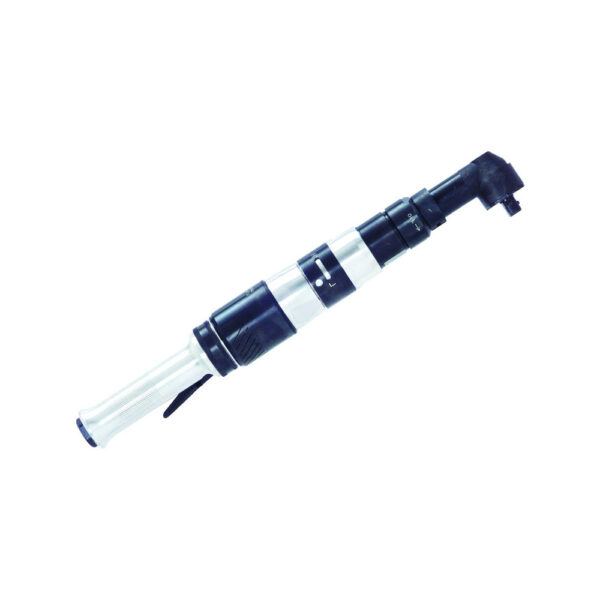

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch

Price: $8,221.50

Part Number: 75RNAL-2X-6

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch. Square Drive: 3/4” Torque Range: 150-305ft-lbs. / 203-410Nm Free Speed (rpm): 80 Overall Length: 22.6” / 575mm Weight: 15.0lbs / 6.8kg Head Height: 2.8” / 70mm

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch Description

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature an external torque adjustment, are reversible, feature a rotating exhaust deflector, and are available with a 1/2” and 3/4” square drive. Cleco 75 Series Clecomatic Clutch Angle Nutrunners inlcude a heavy-duty cleco motor which is the industry standard for reliability. Cleco 75 Series Clecomatic Clutch Angle Nutrunners durable Clecomatic Clutch delivers the best-in-class torque repeatability and long calibration cycle. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature planetary gears that are designed for tool speed changes with minimal parts service and replacement. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature heavy-duty spindle bearings and splined retractable spindles thar reduce friction, improve torque repeatability, and prolongs life. Clecomatic nutrunners shut off the instant the clutch reaches its adjustable preset torque. This action provides an accurate method of controlling torque without sacrificing tool speed. Square Drive: 3/4” Torque Range: 150-305ft-lbs. / 203-410Nm Free Speed (rpm): 80 Overall Length: 22.6” / 575mm Weight: 15.0lbs / 6.8kg Head Height: 2.8” / 70mm Side to Center: 1.4” / 37mm Angle Head: X Air Inlet NPT: 1/2” Min. Hose I.D: 1/2” SCFM: 70

Technical Specifications

Additional information

Square Drive

3/4''

Torque Range

150-305ft-lbs./203-410Nm

Free Speed (rpm)

80

Overall Length

22.6''/575mm

Weight

15.0lbs/6.8kg

Head Height

2.8''/70mm

Side To Center

1.4''/37mm

Angle Head Size

X

Air Inlet NPT

1/2''

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch Description

75RNAL-2X-6 CLECO 75 Series Angle Nutrunner, Clecomatic Clutch. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature an external torque adjustment, are reversible, feature a rotating exhaust deflector, and are available with a 1/2” and 3/4” square drive. Cleco 75 Series Clecomatic Clutch Angle Nutrunners inlcude a heavy-duty cleco motor which is the industry standard for reliability. Cleco 75 Series Clecomatic Clutch Angle Nutrunners durable Clecomatic Clutch delivers the best-in-class torque repeatability and long calibration cycle. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature planetary gears that are designed for tool speed changes with minimal parts service and replacement. Cleco 75 Series Clecomatic Clutch Angle Nutrunners feature heavy-duty spindle bearings and splined retractable spindles thar reduce friction, improve torque repeatability, and prolongs life. Clecomatic nutrunners shut off the instant the clutch reaches its adjustable preset torque. This action provides an accurate method of controlling torque without sacrificing tool speed. Square Drive: 3/4” Torque Range: 150-305ft-lbs. / 203-410Nm Free Speed (rpm): 80 Overall Length: 22.6” / 575mm Weight: 15.0lbs / 6.8kg Head Height: 2.8” / 70mm Side to Center: 1.4” / 37mm Angle Head: X Air Inlet NPT: 1/2” Min. Hose I.D: 1/2” SCFM: 70

Additional information

Square Drive

3/4''

Torque Range

150-305ft-lbs./203-410Nm

Free Speed (rpm)

80

Overall Length

22.6''/575mm

Weight

15.0lbs/6.8kg

Head Height

2.8''/70mm

Side To Center

1.4''/37mm

Angle Head Size

X

Air Inlet NPT

1/2''
