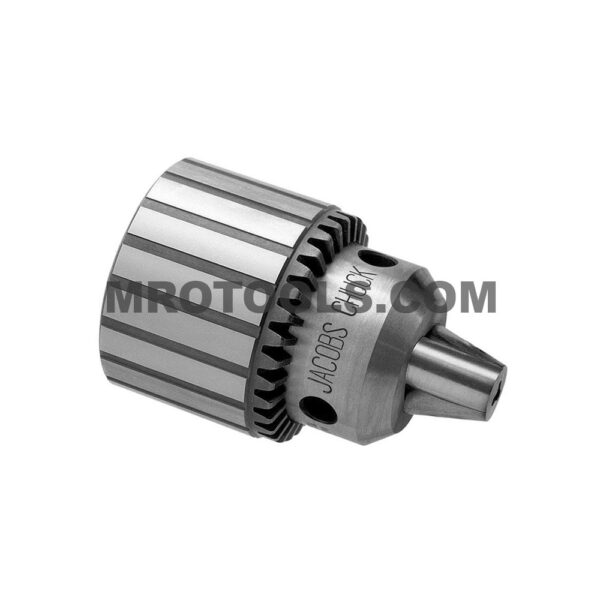

Jacobs taper mounted chuck, medium duty. Chuck Size: 1/4” Model Number: 1A Minimum Capacity: 0.040” Maximum Capacity: 0.250” Mount: 1JT Key Number: K1 Closed Length: 1.920” Open Length: 1.540” Sleeve Diameter: 1.180”
Jacobs plain bearing taper mounted chucks feature jaws center-ground for absolute straightness and alignment and a one-piece sleeve that eliminates cracks between driving teeth often found in other designs. Jacobs plain bearing taper mounted chucks feature through-hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance. Each chuck 100% inspected for performance and precision. T.I.R. .004” maximum at half capacity.
| Brand | Jacobs |
|---|---|
| Chuck Size | 1/4'' |
| Model Number | 1A |
| Minimum Capacity | 0.040'' |
| Maximum Capacity | 0.250'' |
| Mount | 1JT |
| Key Number | K1 |
| Closed Length | 1.920'' |
| Open Length | 1.540'' |
| Sleeve Diameter | 1.180'' |
| UPC | 95456062061 |
| Brand | Jacobs |
|---|---|
| Chuck Size | 1/4'' |
| Model Number | 1A |
| Minimum Capacity | 0.040'' |
| Maximum Capacity | 0.250'' |
| Mount | 1JT |
| Key Number | K1 |
| Closed Length | 1.920'' |
| Open Length | 1.540'' |
| Sleeve Diameter | 1.180'' |
| UPC | 95456062061 |
