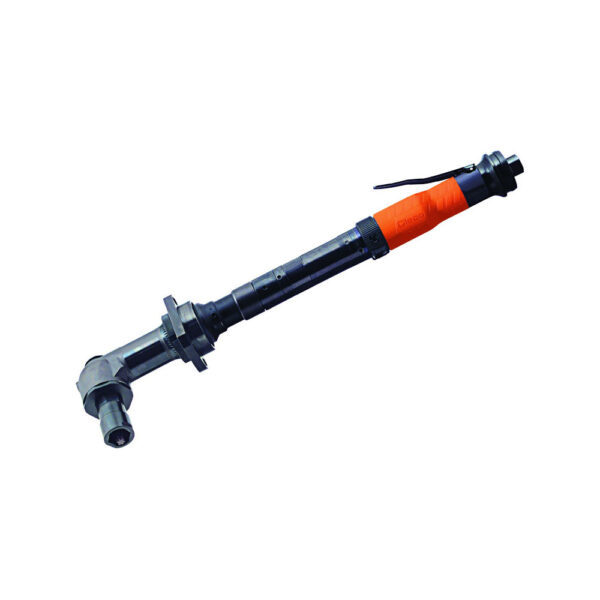

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch

Price: Price On Request

Part Number: 34RAA67H

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch. Hold Size: 7mm Female Hex Torque Range: 24-49ft-lbs. / 33-67Nm Free Speed (rpm): 265 Overall Length: 20.7” / 526 Weight: 8.0lbs / 3.5kg Head Height: 2.4” / 61mm Side to Center: 1.06”

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch Description

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners feature an external torque adjustment, an indexable head, one torque spring to meet specified range, a 1” retraction of hold spindle, oil-less blades, are reversible, and are lightweight, ergonomic, and easy to service. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners feature an indexable head for added versatility. The durable Clecomatic Clutch on the Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners delivers best-in-class torque repeatability and long calibration cycle. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners also feature a heavy-duty cleco motor which is the industry standard for relability, and oil-less blades that eliminate oil mess from the work area. Hold and drive nutrunners are specially configured for use in automotive assembly and repair operations. Their unique design features a pair of sockets that can simultaneously hold a nut in place while tightening a bolt. This makes them ideal for blind applications, such as those involving car and truck frames, as it eliminates the need for an additional operator. Cleco hold and drive nutrunners are available with Clecomatic clutch-style torque control, they are reversible drive enabled, and they feature an indexable anglehead. Hold Size: 7mm Female Hex Torque Range: 24-49ft-lbs. / 33-67Nm Free Speed (rpm): 265 Overall Length: 20.7” / 526 Weight: 8.0lbs / 3.5kg Head Height: 2.4” / 61mm Side to Center: 1.06” / 27mm Air Inlet NPT: 3/8” Min. Hose I.D: 5/16” SCFM: 34

Technical Specifications

Additional information

Hold Size

7mm Female Hex

Torque Range

24-49ft-lbs./33-67Nm

Free Speed (rpm)

265

Overall Length

20.7''/526

Weight

8.0lbs/3.5kg

Head Height

2.4''/61mm

Side To Center

1.06''/27mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch Description

34RAA67H CLECO 34 Series Hold & Drive Nutrunner, Clecomatic Clutch. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners feature an external torque adjustment, an indexable head, one torque spring to meet specified range, a 1” retraction of hold spindle, oil-less blades, are reversible, and are lightweight, ergonomic, and easy to service. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners feature an indexable head for added versatility. The durable Clecomatic Clutch on the Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners delivers best-in-class torque repeatability and long calibration cycle. Cleco 34 Series Clecomatic Clutch Hold & Drive Nutrunners also feature a heavy-duty cleco motor which is the industry standard for relability, and oil-less blades that eliminate oil mess from the work area. Hold and drive nutrunners are specially configured for use in automotive assembly and repair operations. Their unique design features a pair of sockets that can simultaneously hold a nut in place while tightening a bolt. This makes them ideal for blind applications, such as those involving car and truck frames, as it eliminates the need for an additional operator. Cleco hold and drive nutrunners are available with Clecomatic clutch-style torque control, they are reversible drive enabled, and they feature an indexable anglehead. Hold Size: 7mm Female Hex Torque Range: 24-49ft-lbs. / 33-67Nm Free Speed (rpm): 265 Overall Length: 20.7” / 526 Weight: 8.0lbs / 3.5kg Head Height: 2.4” / 61mm Side to Center: 1.06” / 27mm Air Inlet NPT: 3/8” Min. Hose I.D: 5/16” SCFM: 34

Additional information

Hold Size

7mm Female Hex

Torque Range

24-49ft-lbs./33-67Nm

Free Speed (rpm)

265

Overall Length

20.7''/526

Weight

8.0lbs/3.5kg

Head Height

2.4''/61mm

Side To Center

1.06''/27mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''
