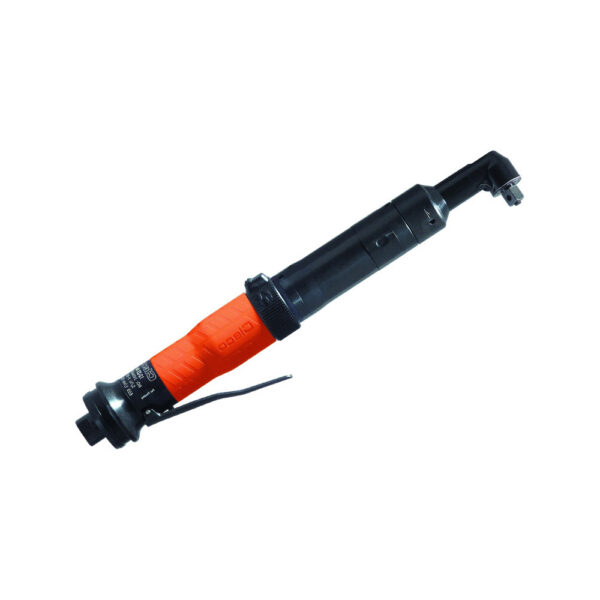

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch

Price: $3,337.40

Part Number: 24RAA12AM3

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch. Square Drive: 3/8” Torque Range: 5-9ft-lbs. / 6-12Nm Free Speed (rpm): 1,200 Overall Length: 14.2” / 360mm Weight: 2.8lbs / 1.3kg Head Height: 1.16” / 29.5mm Side to Center: 0.52”

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch Description

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch. Cleco 24 Series Clecomatic Clutch Angle Nutrunners feature an external torque adjustment, a 3/8” square drive, and indexable anglehead, oiless blades, and one torque spring to meet specified torque. Cleco 24 Series Clecomatic Clutch Angle Nutrunners are lightweight, ergonomic and easy to service. Cleco 24 Series Clecomatic Clutch Angle Nutrunners feature an indexable angle head for added versatility. Cleco 24 Series Clecomatic Clutch Angle Nutrunners durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle. The heavy-duty cleco motor on the Cleco 24 Series Clecomatic Clutch Angle Nutrunners is the industry standard for reliability. Cleco 24 Series Clecomatic Clutch Angle Nutrunners include oil-less blades that reduce the oil mist in the work area. Clecomatic nutrunners shut off the instant the clutch reaches its adjustable preset torque. This action provides an accurate method of controlling torque without sacrificing tool speed. Square Drive: 3/8” Torque Range: 5-9ft-lbs. / 6-12Nm Free Speed (rpm): 1,200 Overall Length: 14.2” / 360mm Weight: 2.8lbs / 1.3kg Head Height: 1.16” / 29.5mm Side to Center: 0.52” / 13.2mm Air Inlet NPT: 3/8” Min. Hose I.D: 5/16” SCFM: 24

Technical Specifications

Additional information

Square Drive

3/8''

Torque Range

5-9ft-lbs./6-12Nm

Free Speed (rpm)

1200

Overall Length

14.2''/360mm

Weight

2.8lbs/1.3kg

Head Height

1.16''/29.5mm

Side To Center

0.52''/13.2mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch Description

24RAA12AM3 CLECO 24 Series Angle Nutrunner, Clecomatic Clutch. Cleco 24 Series Clecomatic Clutch Angle Nutrunners feature an external torque adjustment, a 3/8” square drive, and indexable anglehead, oiless blades, and one torque spring to meet specified torque. Cleco 24 Series Clecomatic Clutch Angle Nutrunners are lightweight, ergonomic and easy to service. Cleco 24 Series Clecomatic Clutch Angle Nutrunners feature an indexable angle head for added versatility. Cleco 24 Series Clecomatic Clutch Angle Nutrunners durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle. The heavy-duty cleco motor on the Cleco 24 Series Clecomatic Clutch Angle Nutrunners is the industry standard for reliability. Cleco 24 Series Clecomatic Clutch Angle Nutrunners include oil-less blades that reduce the oil mist in the work area. Clecomatic nutrunners shut off the instant the clutch reaches its adjustable preset torque. This action provides an accurate method of controlling torque without sacrificing tool speed. Square Drive: 3/8” Torque Range: 5-9ft-lbs. / 6-12Nm Free Speed (rpm): 1,200 Overall Length: 14.2” / 360mm Weight: 2.8lbs / 1.3kg Head Height: 1.16” / 29.5mm Side to Center: 0.52” / 13.2mm Air Inlet NPT: 3/8” Min. Hose I.D: 5/16” SCFM: 24

Additional information

Square Drive

3/8''

Torque Range

5-9ft-lbs./6-12Nm

Free Speed (rpm)

1200

Overall Length

14.2''/360mm

Weight

2.8lbs/1.3kg

Head Height

1.16''/29.5mm

Side To Center

0.52''/13.2mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''
