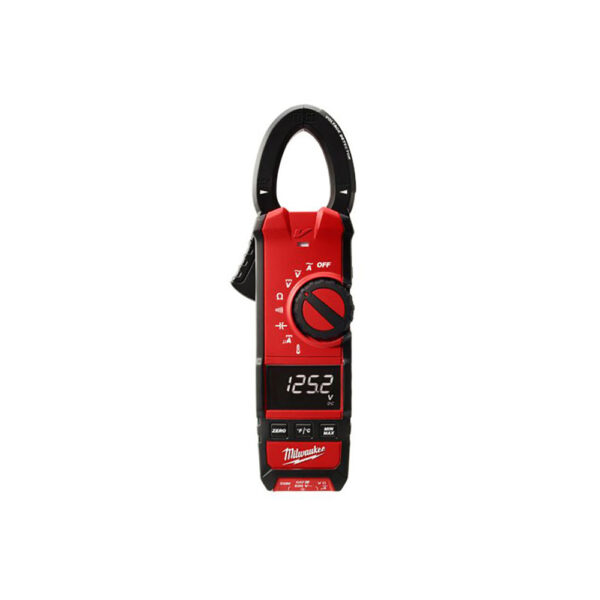

2236-20 Milwaukee Clamp Meter for HVAC/R Tool Warranty: 5 Years Battery Type: Alkaline (AA) Display Type: High Contrast White on Black Length: 9 1/2” Switch Type: Dial TRMS: Yes Jaw Size: 1.3”
Milwaukee 2155-AC RADIUS LED 70w Temporary Site Light Milwaukee 2236-20 Clamp Meter for HVAC/R: Measures up to 600 amps AC, Large 1.30” jaw opening, Thin Jaw Profile for easier wire measurement in panels or in bundles, Wide Voltage range to 600 AC/DC volts, True-RMS for accurate measurement in all applications, Built-In Voltage Detector and LED Work Light, Thermocouple (dual banana) input for contact temperature measurement, 600 uA DC for Flame Rectification, High Contrast, White on Black Display with Backlight for easy reading
Milwaukee 2236-20 Clamp Meter for HVAC/R Includes
Part Number | 2236-20 |
---|---|
Tool Warranty | 5 Years |
Battery type | Alkaline (AA) |
Display Type | High Contrast White on Black |
Length | 9 1/2'' |
Switch Type | Dial |
TRMS | Yes |
Jaw Size | 1.3'' |
Safety Rating | CAT III 600V |
Current AC | 600A |
Microamps DC | 600?A |
Voltage AC DC | 600V |
Resistance | 6 k? |
Continuity | Yes |
Capacitance | Yes |
Contact Temperature | -40? F to 752? F (-40? C to 400? C) |
Hold | Yes |
Display Backlight | Yes |
Non Contact Voltage | Yes |
LED Work Light | Yes |
Rugged Over molding | Yes |
Temp | Yes |
Dual Banana Thermocouple In. | Yes |
Indication | Visual (for NCVD) |
UPC | 045242173761 |
Milwaukee 2236-20 Clamp Meter for HVAC/R Includes
Part Number | 2236-20 |
---|---|
Tool Warranty | 5 Years |
Battery type | Alkaline (AA) |
Display Type | High Contrast White on Black |
Length | 9 1/2'' |
Switch Type | Dial |
TRMS | Yes |
Jaw Size | 1.3'' |
Safety Rating | CAT III 600V |
Current AC | 600A |
Microamps DC | 600?A |
Voltage AC DC | 600V |
Resistance | 6 k? |
Continuity | Yes |
Capacitance | Yes |
Contact Temperature | -40? F to 752? F (-40? C to 400? C) |
Hold | Yes |
Display Backlight | Yes |
Non Contact Voltage | Yes |
LED Work Light | Yes |
Rugged Over molding | Yes |
Temp | Yes |
Dual Banana Thermocouple In. | Yes |
Indication | Visual (for NCVD) |
UPC | 045242173761 |
