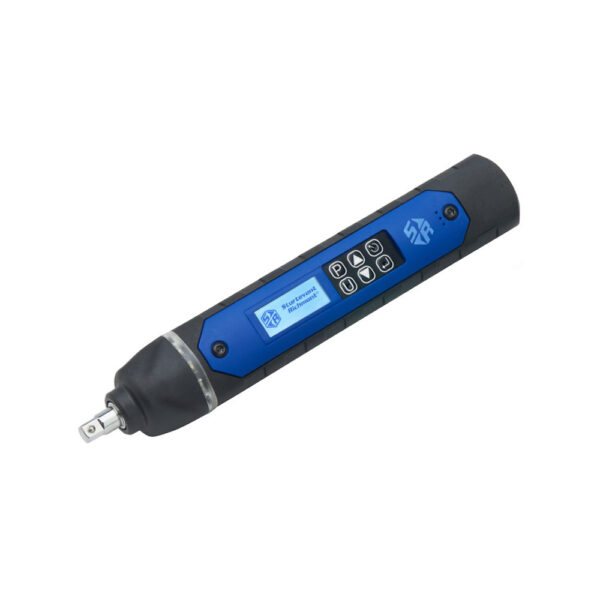

10771 Sturtevant Richmont 1350 TDM Radio Equipped Digital Torque & Angle Screwdriver

Price: $2,126.49

Part Number: 10771

10771 Sturtevant Richmont 1350 TDM Radio Equipped Digital Torque & Angle Screwdriver Model: 1350 Series TD (Torque Driver 80) Capacity: 80 in. lb. Length: 7.5” Weight: 8 oz. Drive Style: 1/4” Male SQ DR

10771 Sturtevant Richmont 1350 TDM Radio Equipped Digital Torque & Angle Screwdriver Description

The 1350 Series TD Digital Torque and Angle Torque Drivers bring a new level of torque control and accuracy to your low torque applications. Here is a quick list of features that help make your low torque applications error-free.

Sturtevant Richmont 1350 Radio Equipped Digital Torque & Angle Screwdriver Features:

  • The 1350 Series TD is compatible with the Global 400 and Global 400mp controllers.
  • Meets/exceeds ASME B107.300-2010 and ISO 6789
  • Bi-directional +/- 2% Indicated Value from 5% to 100% of tool capacity.
  • The 80 inch-pound driver range is 4 to 80 inch-pounds.
  • The 100 inch-ounce driver range is 5 to 100 inch-ounces.
  • All torque and angle settings are set using the Global 400 or Global 400mp. Error proofing feature: parameters cannot be set using the buttons on the torque screwdriver. This prevents any inadvertent P-Set changes and protects your assembly process integrity.
  • You can pair this tool with multiple P-Sets at different torque or torque and angle values because it is a digital tool. This can be used to replace multiple preset tools.
  • TAM function (Torque and Angle Monitoring) provides you with ”double hit” protection. If a fastener reaches torque without the required degrees of rotation the fastener is rejected as non-compliant.
  • Torque and angle functionality can also alert the operator if a gasket or washer is missing because it shows changing joint conditions.
  • The display backlight is visible when torque is applied. Displays the torque and angle value on the digital display on the screwdriver.
  • Visible from any angle, the light band on the driver turns yellow, then green, the driver beeps, and the body vibrates when target torque is achieved.
  • Units of measure: in-oz, in-lb, ft-lb, cNm, NM, cmkg
  • Modes of operation: Peak, TAM, T2A, Residual, Prevailing Torque

Technical Specifications

Additional information

Model

1350 Series TD (Torque Driver 80)

Capacity

80 in. lb.

Length

7.5''

Weight

8 oz.

Drive Style

1/4'' Male SQ DR

10771 Sturtevant Richmont 1350 TDM Radio Equipped Digital Torque & Angle Screwdriver Description

The 1350 Series TD Digital Torque and Angle Torque Drivers bring a new level of torque control and accuracy to your low torque applications. Here is a quick list of features that help make your low torque applications error-free.

Sturtevant Richmont 1350 Radio Equipped Digital Torque & Angle Screwdriver Features:

  • The 1350 Series TD is compatible with the Global 400 and Global 400mp controllers.
  • Meets/exceeds ASME B107.300-2010 and ISO 6789
  • Bi-directional +/- 2% Indicated Value from 5% to 100% of tool capacity.
  • The 80 inch-pound driver range is 4 to 80 inch-pounds.
  • The 100 inch-ounce driver range is 5 to 100 inch-ounces.
  • All torque and angle settings are set using the Global 400 or Global 400mp. Error proofing feature: parameters cannot be set using the buttons on the torque screwdriver. This prevents any inadvertent P-Set changes and protects your assembly process integrity.
  • You can pair this tool with multiple P-Sets at different torque or torque and angle values because it is a digital tool. This can be used to replace multiple preset tools.
  • TAM function (Torque and Angle Monitoring) provides you with ”double hit” protection. If a fastener reaches torque without the required degrees of rotation the fastener is rejected as non-compliant.
  • Torque and angle functionality can also alert the operator if a gasket or washer is missing because it shows changing joint conditions.
  • The display backlight is visible when torque is applied. Displays the torque and angle value on the digital display on the screwdriver.
  • Visible from any angle, the light band on the driver turns yellow, then green, the driver beeps, and the body vibrates when target torque is achieved.
  • Units of measure: in-oz, in-lb, ft-lb, cNm, NM, cmkg
  • Modes of operation: Peak, TAM, T2A, Residual, Prevailing Torque

Additional information

Model

1350 Series TD (Torque Driver 80)

Capacity

80 in. lb.

Length

7.5''

Weight

8 oz.

Drive Style

1/4'' Male SQ DR
