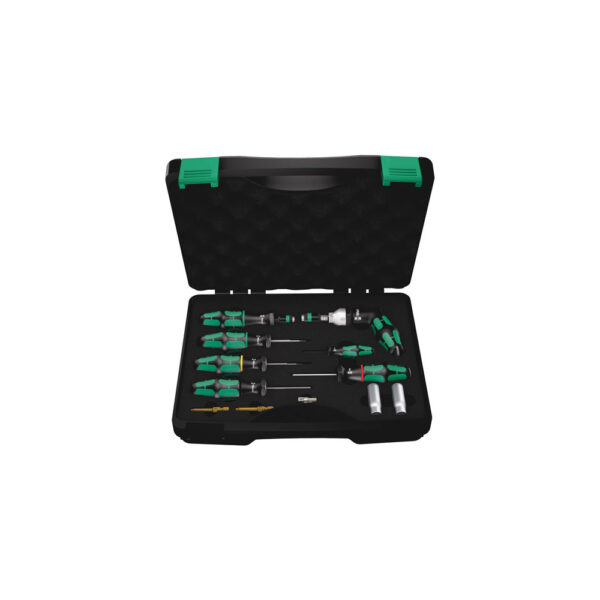

05074746001 Wera 7443/12 12PC Tire Pressure Control System Assembly Set Description

05074746001 Wera 7443/12 12PC Tire Pressure Control System Assembly Set is used for the proper assembly and disassembly of Tire pressure control systems. Comes with torque technology for controlled screw tightening. Hand tool with multi-component Kraftform handle for high working speeds and ergonomic working. Five pre-set tools to connect the union nut with the screw and to fasten the sensor component to the valve. Two pre-set valve insertion tools with 0.25 and 0.45 Nm. An adjustable Kraftform pistol handle for torque values of between 4.0 and 8.8 Nm. Suitable for all customary Tire pressure control systems. Dependable fastening thanks to distinctly coloured marking of the pre-set torque values (Beru/Huf®: TX 10 yellow 1.25 Nm; Schrader®: TX 10 green 1.4 Nm; Cup®/RTS®: TX 20 grey 2.0 Nm). Two TX bits with holding function, socket adaptor, two sockets plus a valve dolly (for applications up to 4.5 Nm). Suitable for Tire control, systems from e.g. Schrader®, Alligator®, VDO®. The pre-set torque screwdriver fixed at 3.3 Nm actuates both the union nut as well as the connecting screw on the sensors of the Alligator system. Additionally included: socket adaptor, two bits, valve dolly (for applications up to 4.5 Nm).

Wera 7443/12 12PC Tire Pressure Control System Assembly Set Includes

• 05074705001 1x 7443 x 4.0-8.8Nm
• Series 7400 Kraftform pre-set, adjustable torque screwdrivers (0,1-1,5 Nm) with Rapidaptor quick-release chuck, handle size 89mm 1x 7464×3.3 Nmx3.0-6.0Nm
• 300 TX TORX Torque-indicator 1x TX 10×1.25Nm
• 300 TX TORX Torque-indicator 1x TX 10×1.4Nm
• 790 A/50 Nut Spinner Socket 1x 11x50mm
• 790 A/50 Nut Spinner Socket 1x 12x50mm
• 05060082001 1x TX 15 x 50mm
• 05060083001 1x TX 20 x 50mm
• 05136000001 1x 1/4” x 25mm
• 300 V Valve Holder 1x 0.25Nm
• 300 V Valve Holder 1x 0.45Nm
• 327 Valve Holder 1x 32x70mm
